FSN-21A-20 - TE Connectivity

Description: FFC / FPC Jumper Cables 1" 20 CONDUCTOR .100 Nomex

Download FSN-21A-20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FSN-21A-20 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

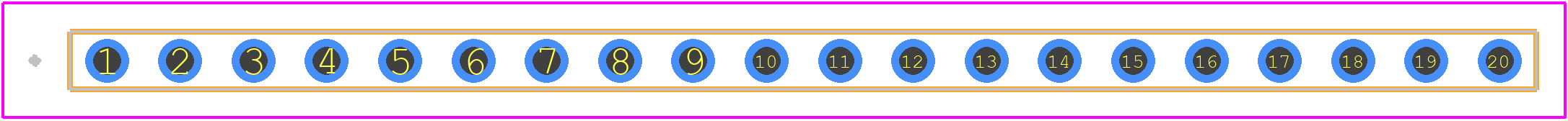

FSN-21A-20 - TE Connectivity PCB footprint - Other - Other - FSN-21A-20-3
click to zoom
3D Models
FSN-21A-20 - TE Connectivity - 3D model - Other - FSN-21A-20-3
click to zoom

FSN-21A-20 Details

  • Manufacturer Part Number:

    FSN-21A-20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Length:

    1 inch

  • Cable Types:

    SOLID

  • Characteristic Impedance:

    117 Ω

  • Connector Type:

    SHUNT

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • Wire Size-Max:

    24 AWG

FSN-21A-20 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the FSN-21A-20 connector.
  • Yes, the FSN-21A-20 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • Yes, the FSN-21A-20 connector is designed to operate in harsh environments, including extreme temperatures (-40°C to 125°C), humidity, and exposure to chemicals and fluids.
  • The FSN-21A-20 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the FSN-21A-20 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories, ensuring a comprehensive connectivity solution.
