FSSD07BQX - onsemi

Description: FSSD07BQX ON Semiconductor, Multiplexer Switch IC Single 2:1, 1.65 → 3.6 V, 24-Pin UMLP

Download FSSD07BQX Model

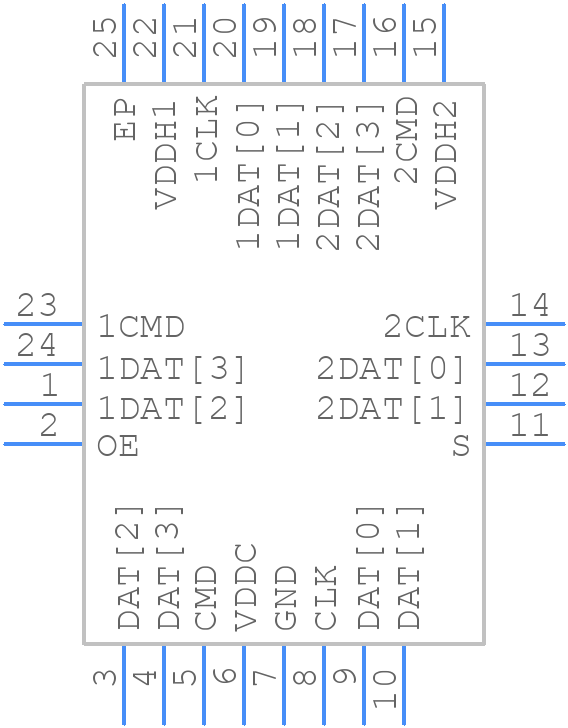

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSSD07BQX - onsemi PCB footprint - Other - Other - FSSD07BQX-3
click to zoom
3D Models
FSSD07BQX - onsemi  - 3D model - Other - FSSD07BQX-3
click to zoom

FSSD07BQX Details

  • Manufacturer Part Number:

    FSSD07BQX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MLP-24

  • Manufacturer Package Code:

    510CE

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

FSSD07BQX Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FSSD07BQX is -40°C to 150°C.
  • To ensure proper biasing, connect the gate to a voltage source through a resistor, and the source to ground through a resistor. The recommended biasing voltage is 10V to 20V.
  • The maximum current rating for the FSSD07BQX is 7A.
  • To protect the FSSD07BQX from ESD, handle the device with an anti-static wrist strap or mat, and ensure the workspace is ESD-safe.
  • For optimal performance, use a PCB layout with a solid ground plane, and keep the drain and source pins as close as possible to minimize inductance.
