A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the USB connector, and the signal traces should be kept short and shielded to minimize EMI.
The device is rated for operation up to 85°C. To ensure reliable operation, ensure good thermal design, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, consider using a thermal pad or thermal interface material to improve heat dissipation.
The FSUSB11MTCX has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the FSUSB11MTCX is compatible with USB 3.0 applications. However, it's essential to follow the USB 3.0 specification guidelines for signal integrity, impedance matching, and PCB layout to ensure reliable operation at high speeds.
Use a logic analyzer or oscilloscope to capture and analyze the USB signals. Check the device's power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is up-to-date. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSUSB11MTCX Overview

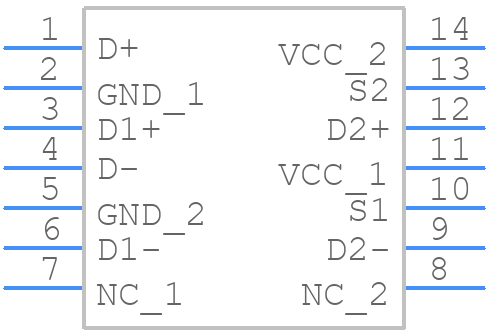

Use the download button to access the FSUSB11MTCX schematic symbol, PCB footprint, and 3D model.
