FT2232C footprint, schematic symbol and 3D model by FTDI Chip

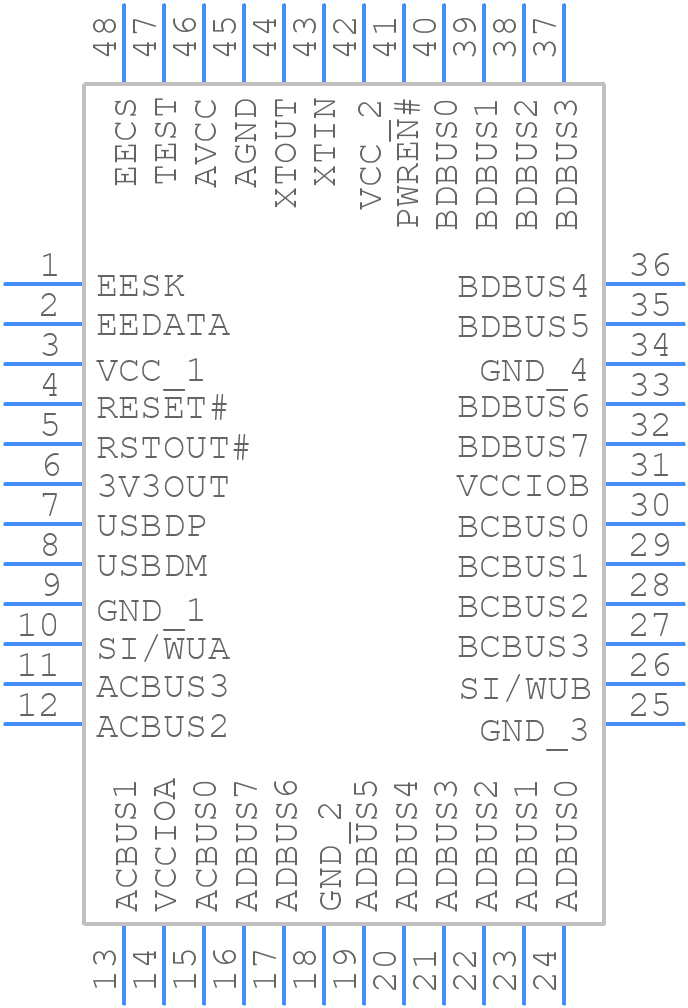

Symbol

PCB Footprints

3D Models

FT2232C Details

The maximum cable length for the FT2232C is dependent on the baud rate and the quality of the cable. As a general rule, FTDI recommends a maximum cable length of 3 meters (10 feet) for baud rates up to 1 Mbps, and 1.5 meters (5 feet) for baud rates above 1 Mbps.
The FT2232C can be configured for I2C or SPI mode using the MPSSE (Multi-Protocol Synchronous Serial Engine) commands. The MPSSE engine allows the FT2232C to emulate a variety of serial protocols, including I2C and SPI. The configuration is typically done using the FTDI's D2XX driver and the MPSSE commands.
The maximum power consumption of the FT2232C is typically around 200-250 mA, depending on the operating frequency and the load on the USB bus. However, the power consumption can be reduced by using the device's low-power modes and by optimizing the firmware and hardware design.
Yes, the FT2232C can be used as a USB-to-serial converter. The device has a built-in UART interface that can be used to convert USB signals to serial signals, and vice versa. The FT2232C can be configured to operate in a variety of serial modes, including RS-232, RS-422, and RS-485.
The FT2232C supports flow control using RTS/CTS (Request to Send/Clear to Send) signals. The device can be configured to use hardware flow control, where the RTS and CTS signals are used to control the flow of data. The flow control can be implemented using the FTDI's D2XX driver and the MPSSE commands.

Community Provided

System Verified

Community Approved

Use the download button to access the FT2232C schematic symbol, PCB footprint, and 3D model.
