FT2232HQ-TRAY - FTDI Chip

Description: USB Interface IC USB HS to Dual UART/ FIFO/SPI/JTAG/I2C

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

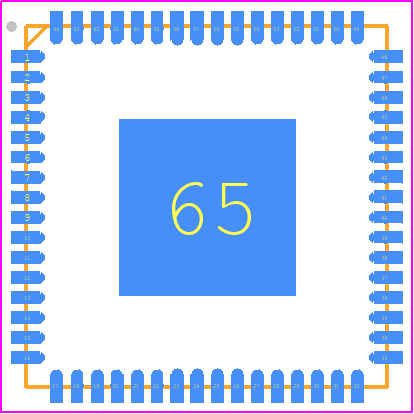

FT2232HQ-TRAY - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-64_2020
click to zoom

3D Models

FT2232HQ-TRAY - FTDI Chip  - 3D model - Quad Flat No-Lead - QFN-64_2020
click to zoom

FT2232HQ-TRAY Details

  • Manufacturer Part Number:

    FT2232HQ-TRAY

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC64,.35SQ,20

  • Pin Count:

    64

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • Risk Rank:

    1.85

  • Samacsys Modified On:

    2020-07-15 06:26:22

  • YTEOL:

    7.7

  • Additional Feature:

    IT ALSO OPERATES AT 3.3 V

  • Address Bus Width:

    16

  • Bus Compatibility:

    8048; 8051

  • Clock Frequency-Max:

    12 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQCC-N64

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    1.8,3.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Subcategory:

    Other Microprocessor ICs

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

FT2232HQ-TRAY Overview

Use the download button to access the FT2232HQ-TRAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT223, or try a keyword search, such as Bus Controllers
