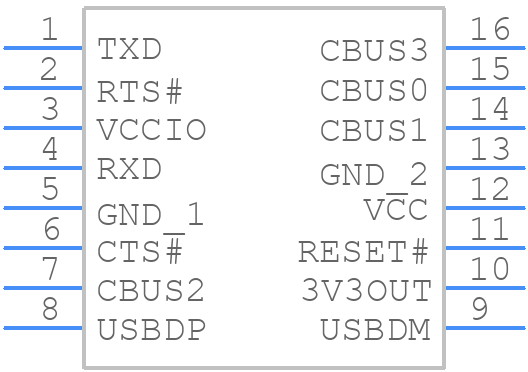

FT230XS-R - FTDI(Future Designs)

FT230XS-R Details

• Manufacturer Part Number:

  FT230XS-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-16

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Manufacturer:

  FTDI Chip

• YTEOL:

  7.65

• Additional Feature:

  USB 2.0

• Bus Compatibility:

  UART, USB

• Clock Frequency-Max:

  12.02 MHz

• Data Transfer Rate-Max:

  60 MBps

• JESD-30 Code:

  R-PDSO-G16

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7526 mm

• Supply Current-Max:

  8.3 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
