FT231XQ-R - FTDI Chip

Description: FTDI Chip FT231XQ-R, USB Transceiver

Download FT231XQ-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

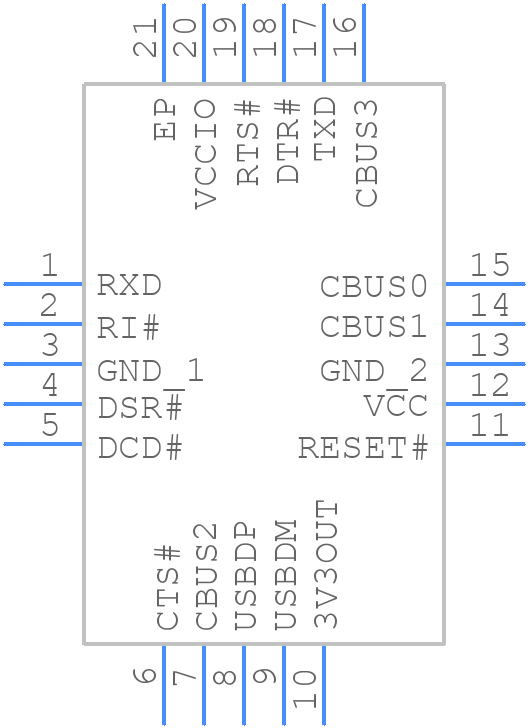

FT231XQ-R - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT231XQ-R - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-20
click to zoom
3D Models
FT231XQ-R - FTDI Chip - 3D model - Quad Flat No-Lead - QFN-20
click to zoom

FT231XQ-R Details

  • Manufacturer Part Number:

    FT231XQ-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    7.65

  • Bus Compatibility:

    UART; USB

  • Clock Frequency-Max:

    12.02 MHz

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8.4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT231XQ-R Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT231X-R is 3 meters (10 feet) for a full-speed device and 1.5 meters (5 feet) for a low-speed device, assuming a good quality cable with proper shielding and termination.
  • Yes, the FT231XQ-R is 5V tolerant, but it is recommended to use a level shifter or a voltage regulator to ensure reliable operation. The device's VCCIO pin should be connected to a 3.3V power supply.
  • The FT231XQ-R can be configured for a specific baud rate using the FTDI Chip's MProg programming tool or by using the D2XX driver's baud rate configuration API. The device supports baud rates from 300bps to 3Mbps.
  • The power consumption of the FT231XQ-R depends on the operating mode and the clock frequency. In suspend mode, the device consumes around 2.5mA, while in active mode, it consumes around 15mA at 12MHz clock frequency.
  • Yes, the FT231XQ-R can be used with a USB hub, but it is recommended to use a self-powered hub to ensure reliable operation. The device should be connected to a root hub or a self-powered hub to avoid bus-powered hub limitations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT231XQ-R Overview

Use the download button to access the FT231XQ-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT231, or try a keyword search, such as Bus Controllers
