The maximum cable length supported by the FT231XQ-T is 3 meters (10 feet) for a full-speed USB device, and 1.5 meters (5 feet) for a low-speed USB device.
Yes, the FT231XQ-T can operate with a 5V power supply, but it is recommended to use a 3.3V power supply for optimal performance and to reduce power consumption.
The FT231XQ-T can be configured for a specific baud rate using the FTDI Chip's MProg programming tool or by using the FT_Prog programming tool. The baud rate can be set using the 'Baud Rate' register (0x130) in the device's EEPROM.
No, the FT231XQ-T is designed to work with standard USB connectors only. Using a non-standard USB connector may not work or may cause damage to the device.
The FT231XQ-T can be reset to its default settings by pulling the 'EEPROM' pin low for at least 10ms. This will restore the device's EEPROM to its default settings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FT231XQ-T Overview

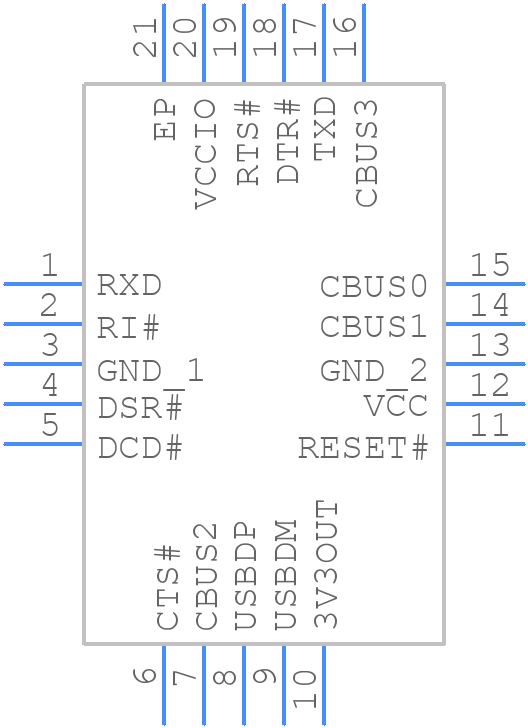

Use the download button to access the FT231XQ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT231,
or try a keyword search, such as Bus Controllers
