FT232BM - FTDI Chip

Description: USB Interface IC Obsolete FT232BL

Download FT232BM Model

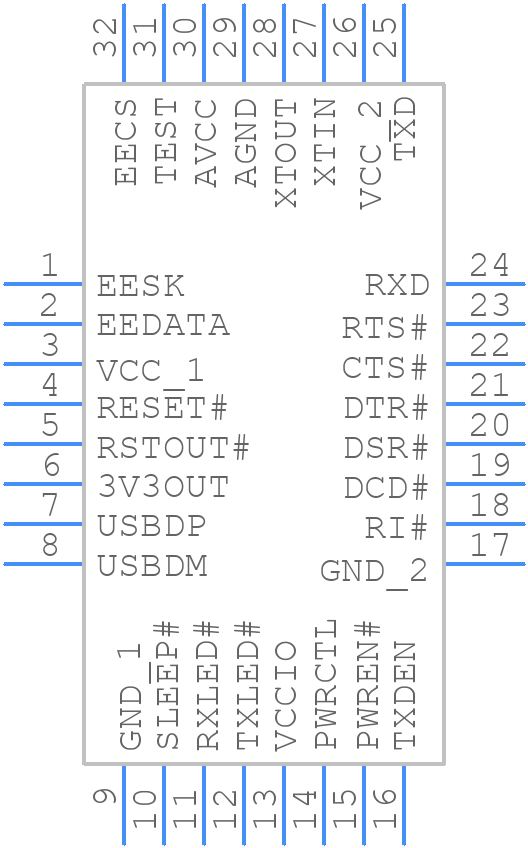

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FT232BM - FTDI Chip PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-32
click to zoom
3D Models
FT232BM - FTDI Chip  - 3D model - Quad Flat Packages - LQFP-32
click to zoom

FT232BM Details

  • Manufacturer Part Number:

    FT232BM

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7 X 7 MM, 0.80 MM PITCH, LQFP-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3 V MINIMUM SUPPLY

  • Clock Frequency-Max:

    6 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.35 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232BM Frequently Asked Questions (FAQs)

  • The maximum cable length supported by FT232BM is 3 meters (10 feet) for full-speed devices and 1.5 meters (5 feet) for low-speed devices.
  • The FT232BM can be configured for 3.3V or 2.8V operation by connecting the VCCIO pin to the desired voltage level. Additionally, the VCC pin should be connected to the same voltage level as the VCCIO pin.
  • The CBUS0 and CBUS1 pins are used to configure the FT232BM for different modes of operation, such as UART, FIFO, or Bit-Bang mode. These pins can also be used as general-purpose I/O pins.
  • Flow control can be implemented using the RTS and CTS pins on the FT232BM. The RTS pin is used to request the transmitter to pause, and the CTS pin is used to indicate when the transmitter can resume.
  • The maximum data transfer rate of the FT232BM is 3 Mbps for full-speed devices and 1.5 Mbps for low-speed devices.
