FT232BQ-REEL - FTDI Chip

Description: USB Interface IC The factory is currently not accepting orders for this product.

Download FT232BQ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

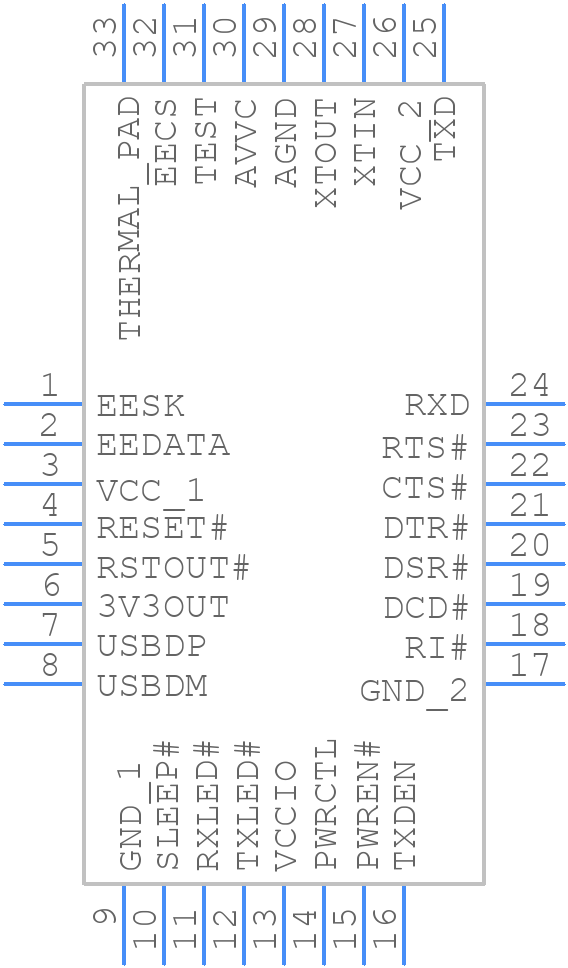

FT232BQ-REEL - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT232BQ-REEL - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FT232BQ-REEL
click to zoom
3D Models
FT232BQ-REEL - FTDI Chip - 3D model - Quad Flat No-Lead - FT232BQ-REEL
click to zoom

FT232BQ-REEL Details

  • Manufacturer Part Number:

    FT232BQ-REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, QFN-32

  • Pin Count:

    32

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • Clock Frequency-Max:

    6 MHz

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.35 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232BQ-REEL Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT232BQ is 3 meters (10 feet) for a reliable connection. However, it's recommended to use a cable length of 1.5 meters (5 feet) or less for optimal performance.
  • Yes, the FT232BQ is 5V tolerant, but it's recommended to use a 3.3V power supply for optimal performance and to reduce power consumption.
  • The FT232BQ can be configured for a specific baud rate using the FTDI Chip's MProg programming tool or by using the FT_Prog utility. The baud rate can be set to a standard rate (e.g., 9600, 19200, 38400, etc.) or a custom rate using the FT232BQ's internal clock.
  • The maximum data transfer rate of the FT232BQ is 3 Mbps (megabits per second). However, the actual data transfer rate may be limited by the system's USB bandwidth and the quality of the cable.
  • Yes, the FT232BQ is compatible with USB 3.0 ports, but it will operate at USB 2.0 speeds (up to 480 Mbps).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT232BQ-REEL Overview

Use the download button to access the FT232BQ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT232, or try a keyword search, such as Bus Controllers
