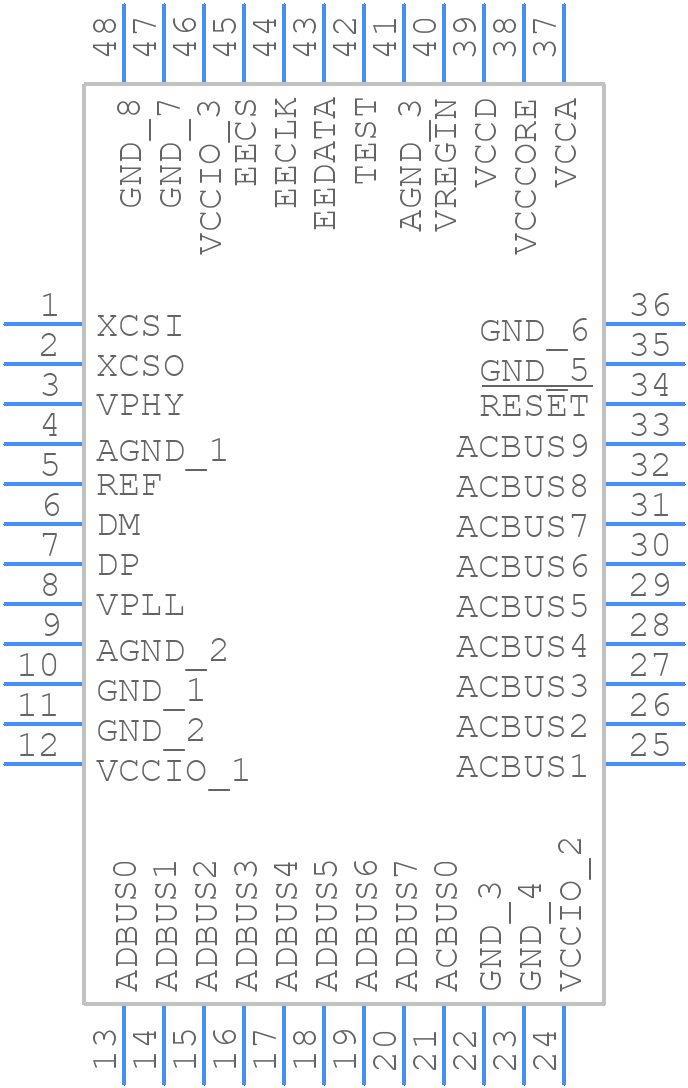

FT232HL-REEL - FTDI Chip

FT232HL-REEL Details

• Manufacturer Part Number:

  FT232HL-REEL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

  LQFP-48

• Pin Count:

  48

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Manufacturer:

  FTDI Chip

• YTEOL:

  7.05

• Address Bus Width:

  1

• Bus Compatibility:

  I2C

• Clock Frequency-Max:

  12 MHz

• Data Transfer Rate-Max:

  40 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G48

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max:

  1.98 V

• Supply Voltage-Min:

  1.62 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
