FT232RL-TUBE - FTDI Chip

Description: USB Interface IC FT232R Single Ch Full Speed

Download FT232RL-TUBE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

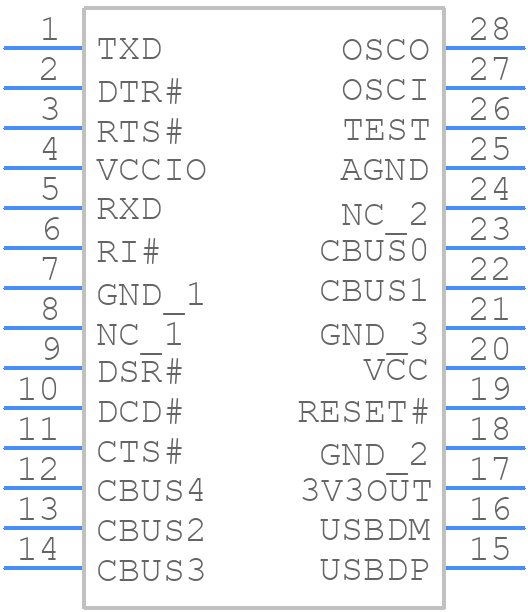

FT232RL-TUBE - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT232RL-TUBE - FTDI Chip PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28 _2
click to zoom
3D Models
FT232RL-TUBE - FTDI Chip - 3D model - Small Outline Packages - SSOP-28 _2
click to zoom

FT232RL-TUBE Details

  • Manufacturer Part Number:

    FT232RL-TUBE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • Bus Compatibility:

    UART, USB

  • Clock Frequency-Max:

    12.02 MHz

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232RL-TUBE Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT232RL is 3 meters (10 feet) for a reliable connection. However, it's recommended to keep the cable length as short as possible to minimize signal degradation and electromagnetic interference (EMI).
  • Yes, the FT232RL is 5V tolerant, but it's recommended to use a 3.3V power supply for optimal performance. If you must use a 5V system, ensure that the VCCIO pin is connected to a 3.3V power supply to prevent damage to the device.
  • The FT232RL can be configured for a specific baud rate using the FTDI Chip's MProg programming tool or by using the EEPROM programming interface. The device can support baud rates from 300bps to 3Mbps.
  • The power consumption of the FT232RL depends on the operating mode. In USB mode, the typical power consumption is around 50mA. In UART mode, the typical power consumption is around 10mA. However, the actual power consumption may vary depending on the specific application and operating conditions.
  • It's not recommended to use the FT232RL with a non-standard USB connector, as it may not meet the USB specification and may cause compatibility issues. It's recommended to use a standard USB connector to ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

FT232RL-TUBE Overview

Use the download button to access the FT232RL-TUBE schematic symbol, PCB footprint, and 3D model.
