Part Image

FT232RNL-REEL - FTDI Chip

Description: UART Interface IC USB Full Speed to Serial UART IC, Includes Oscillator and EEPROM, SSOP-28

Download FT232RNL-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

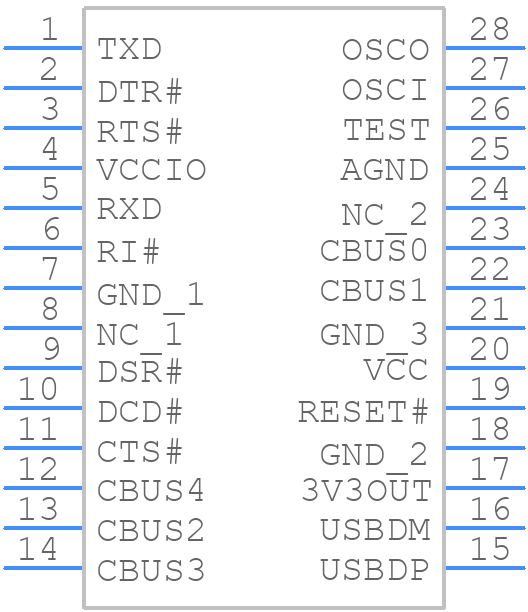

Symbol
FT232RNL-REEL - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT232RNL-REEL - FTDI Chip PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28
click to zoom
3D Models
FT232RNL-REEL - FTDI Chip - 3D model - Small Outline Packages - SSOP-28
click to zoom

FT232RNL-REEL Details

  • Manufacturer Part Number:

    FT232RNL-REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    6.65

  • Bus Compatibility:

    UART

  • Clock Frequency-Max:

    12.02 MHz

  • Data Transfer Rate-Max:

    60 MBps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232RNL-REEL Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT232RNL-REEL is 3 meters (10 feet) for a reliable connection. However, it's recommended to keep the cable length as short as possible to minimize signal degradation and electromagnetic interference (EMI).
  • Yes, the FT232RNL-REEL is 5V tolerant, but it's recommended to use a 3.3V power supply for optimal performance and to minimize power consumption. If you must use a 5V system, ensure that the VCCIO pin is connected to a 3.3V regulator to prevent damage to the device.
  • The FT232RNL-REEL can be configured for a specific baud rate using the FTDI Chip's MProg programming tool or by using the EEPROM programming interface. You can also use the FTDI Chip's D2XX driver to configure the baud rate in software.
  • The maximum data transfer rate of the FT232RNL-REEL is 3 Mbps (megabits per second) for full-speed USB devices and 1 Mbps for low-speed USB devices.
  • Yes, the FT232RNL-REEL can be used with a USB hub, but it's recommended to use a self-powered hub to ensure that the FT232RNL-REEL receives sufficient power. Also, ensure that the hub is compatible with the FT232RNL-REEL's USB protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT232RNL-REEL Overview

Use the download button to access the FT232RNL-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT232, or try a keyword search, such as Bus Controllers
