Part Image

FT232RQ - FTDI Chip

Description: USB to serial TTL level UART FT232RQ

Download FT232RQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

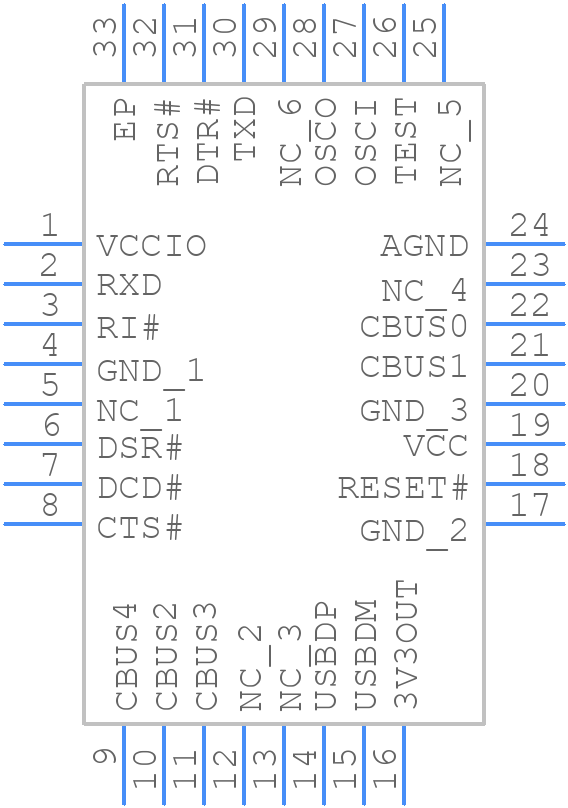

Symbol
FT232RQ - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT232RQ - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32
click to zoom
3D Models
FT232RQ - FTDI Chip - 3D model - Quad Flat No-Lead - QFN-32
click to zoom

FT232RQ Details

  • Manufacturer Part Number:

    FT232RQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    12.02 MHz

  • Drive Interface Standard:

    RS232; RS422; RS485

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232RQ Frequently Asked Questions (FAQs)

  • The maximum cable length supported by FT232RQ is 3 meters (10 feet) for full-speed devices and 1.5 meters (5 feet) for low-speed devices, assuming a good quality cable with proper shielding and termination.
  • The FT232RQ can be configured for 3.3V or 2.8V operation by connecting the VCCIO pin to the desired voltage level. Additionally, the VCC pin should be connected to a 5V power source, and the VCCIO pin should be decoupled with a 100nF capacitor.
  • The maximum data transfer rate of FT232RQ is 3 Mbps for full-speed devices and 1.5 Mbps for low-speed devices.
  • Flow control can be implemented using the RTS (Request to Send) and CTS (Clear to Send) signals. The FT232RQ provides these signals, which can be connected to the corresponding signals on the target device to implement flow control.
  • Yes, the FT232RQ can be used with a USB hub, but it's recommended to use a self-powered hub to ensure reliable operation. Bus-powered hubs may not provide enough power to the FT232RQ, especially if other devices are connected to the hub.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT232RQ Overview

Use the download button to access the FT232RQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT232, or try a keyword search, such as Bus Controllers
