FT245BL-REEL - FTDI Chip

Description: USB to 8-Bit FIFO Interface LQFP32 (not offered in your region)

Download FT245BL-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

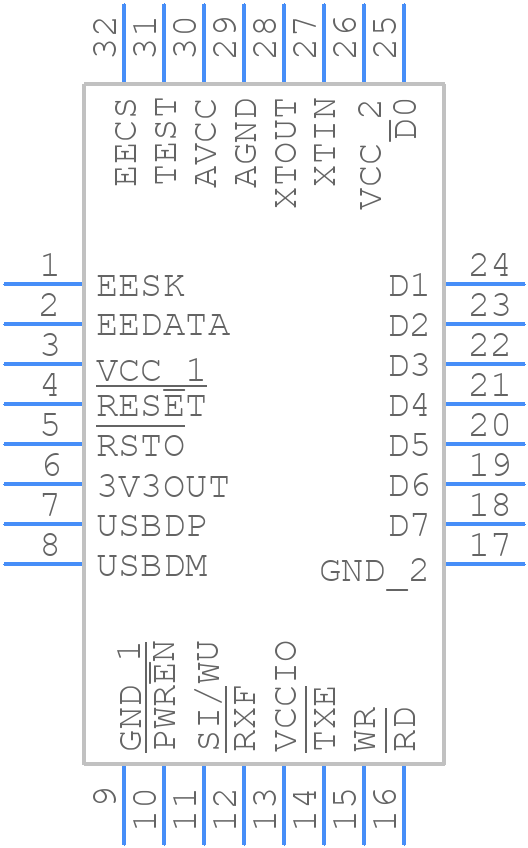

FT245BL-REEL - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT245BL-REEL - FTDI Chip PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-32*
click to zoom
3D Models
FT245BL-REEL - FTDI Chip - 3D model - Quad Flat Packages - LQFP-32*
click to zoom

FT245BL-REEL Details

  • Manufacturer Part Number:

    FT245BL-REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7 X 7 MM, 0.80 MM PITCH, LEAD FREE, LQFP-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.35 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT245BL-REEL Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT245BL is 3 meters (10 feet) for a reliable data transfer rate of 1 Mbps. However, it's recommended to use a shorter cable length for better signal integrity.
  • Yes, the FT245BL is compatible with 3.3V and 2.5V power supplies. However, the VCCIO pin should be connected to the same voltage as the external logic.
  • The 245 FIFO buffer should be handled using the FT_Read and FT_Write functions provided in the FTDI D2XX driver. These functions allow you to read and write data to the FIFO buffer, respectively.
  • The CBUS0 and CBUS1 pins are configurable pins that can be used as GPIOs or for other special functions such as suspend, wake-up, or power-down signals.
  • Yes, the FT245BL is compatible with USB 3.0 ports. However, the device will operate at USB 2.0 speeds (up to 480 Mbps) even when connected to a USB 3.0 port.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT245BL-REEL Overview

Use the download button to access the FT245BL-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT245, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
