- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FT245BL
- Part Number FT245BL
- Manufacturer FTDI Chip
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - 32 LD Lead free LQFP
- Released Date Aug 13, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FT245BL Details
-
Manufacturer Part Number:
FT245BL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
7 X 7 MM, 0.80 MM PITCH, LEAD FREE, LQFP-32
-
Pin Count:
32
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Manufacturer:
FTDI Chip
FT245BL Frequently Asked Questions (FAQs)
-
The maximum cable length for the FT245BL is dependent on the baud rate and the quality of the cable. As a general rule, the maximum cable length is around 3-5 meters at 1 Mbps, but it can be longer at lower baud rates.
-
The FT245BL is a USB to parallel FIFO interface, and it does not support synchronous or asynchronous modes. It is designed for asynchronous communication only.
-
The maximum data transfer rate of the FT245BL is 1 Mbps. However, the actual data transfer rate may be limited by the USB bus and the host system.
-
Yes, the FT245BL can be used with a 5V power supply. The device has an internal voltage regulator that can handle input voltages from 4.5V to 5.5V.
-
The FT245BL can be reset by asserting the reset pin (pin 10) low for at least 50 ns. This will reset the device and clear all internal registers.
Trust Checks
Community Provided
System Verified
Community Approved
FT245BL Overview

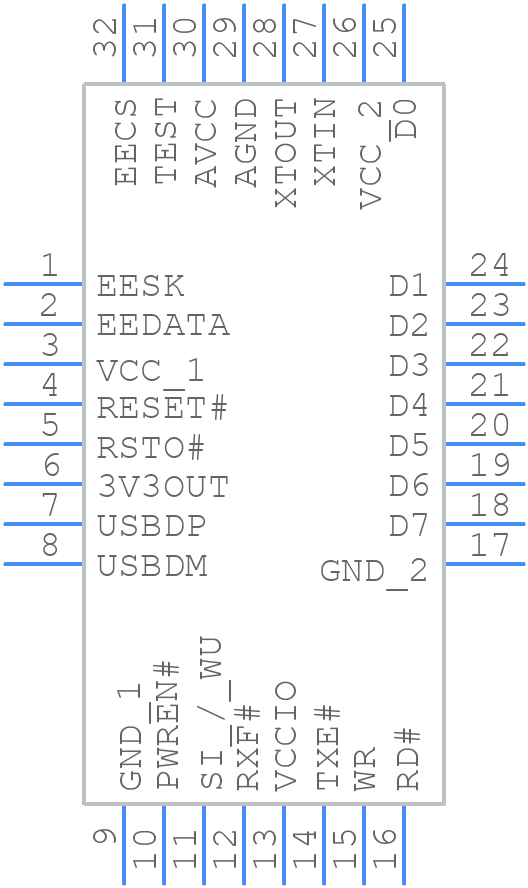

Use the download button to access the FT245BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT245,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
