FT245BM - FTDI Chip

Description: FIFO, 512 x 8, Synchronous, 32 Pin, Plastic, QFP

Download FT245BM Model

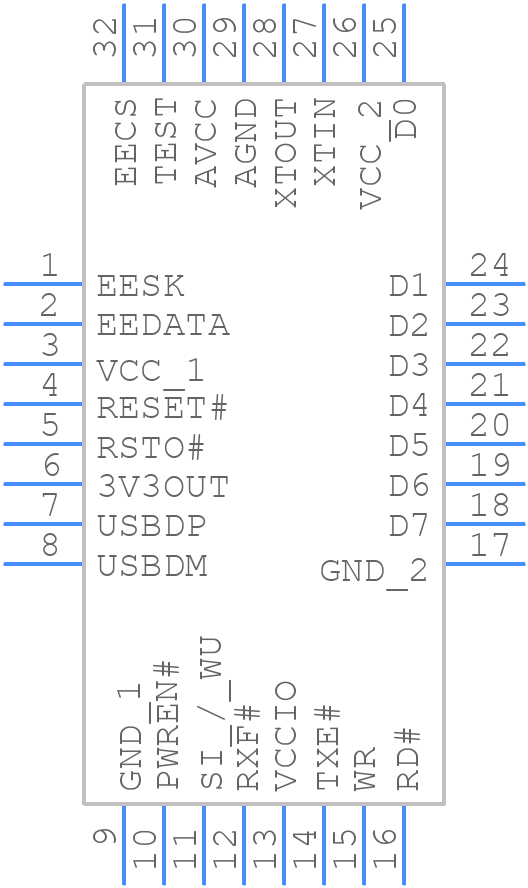

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FT245BM - FTDI Chip PCB footprint - Quad Flat Packages - Quad Flat Packages - 32 LD LQFP
click to zoom
3D Models
FT245BM - FTDI Chip  - 3D model - Quad Flat Packages - 32 LD LQFP
click to zoom

FT245BM Details

  • Manufacturer Part Number:

    FT245BM

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, 0.80 MM PITCH, LQFP-32

  • Pin Count:

    32

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.35 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT245BM Frequently Asked Questions (FAQs)

  • The maximum cable length for the FT245BM is dependent on the baud rate and the quality of the cable. As a general rule, FTDI recommends a maximum cable length of 3 meters at 12 Mbps, 1.5 meters at 24 Mbps, and 0.5 meters at 48 Mbps.
  • The FT245BM is configured for asynchronous mode by default. To configure it for synchronous mode, you need to set the SYNCFF bit in the USB command register (0x08) to '1'. You can do this using the FTDI's MProg programming tool or through the D2XX driver.
  • The maximum power consumption of the FT245BM is 250 mA at 3.3V, which is the maximum current that the device can draw from the USB bus.
  • Yes, the FT245BM is 5V tolerant, but it is recommended to use a level shifter or a voltage regulator to ensure that the voltage levels are within the recommended operating range of 3.3V ± 0.3V.
  • The FT245BM supports RTS/CTS flow control. You can implement flow control by connecting the RTS (Request to Send) output to the CTS (Clear to Send) input of the external device, and vice versa. You can also use software flow control using the XON/XOFF protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT245BM Overview

Use the download button to access the FT245BM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT245, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
