FT245RNL-TUBE - FTDI Chip

Description: UART Interface IC USB Full Speed to Parallel FIFO IC, Includes Oscillator and EEPROM, SSOP-28

Download FT245RNL-TUBE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

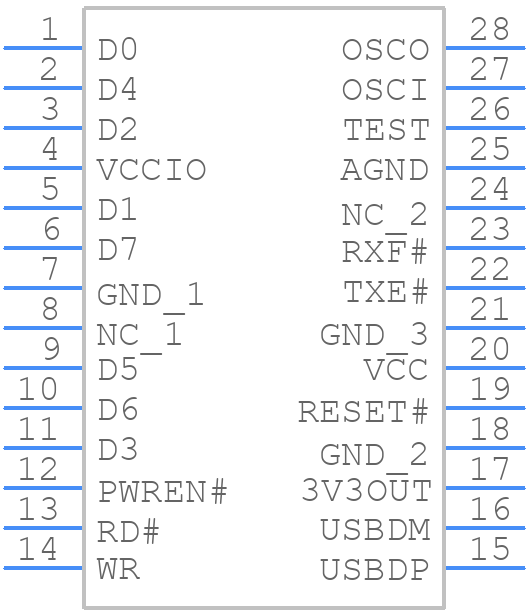

FT245RNL-TUBE - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT245RNL-TUBE - FTDI Chip PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28
click to zoom
3D Models
FT245RNL-TUBE - FTDI Chip - 3D model - Small Outline Packages - SSOP-28
click to zoom

FT245RNL-TUBE Details

  • Manufacturer Part Number:

    FT245RNL-TUBE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    7.9

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    12.02 MHz

  • Data Transfer Rate-Max:

    60 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT245RNL-TUBE Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT245RNL is 3 meters (10 feet) for a full-speed USB device, but it can be extended up to 5 meters (16.4 feet) with the use of an active USB repeater or hub.
  • Yes, the FT245RNL is backward compatible with USB 3.0 systems, but it will only operate at USB 2.0 speeds. It is not a USB 3.0 device and will not take advantage of the higher speeds offered by USB 3.0.
  • The power consumption of the FT245RNL is typically around 50-70 mA, but it can be as high as 100 mA during data transmission. The device can be powered from the USB bus, and it also has an external power input for self-powered applications.
  • Yes, the FT245RNL is designed to be hot-swappable, meaning it can be inserted or removed from a USB port without shutting down the system. However, it's essential to ensure that the device is properly enumerated and configured before data transmission begins.
  • The FT245RNL has a maximum data transfer rate of 1 Mbps in asynchronous mode and 8 Mbps in synchronous mode. However, the actual data transfer rate may be limited by the USB bus bandwidth and the capabilities of the connected device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

FT245RNL-TUBE Overview

Use the download button to access the FT245RNL-TUBE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT245, or try a keyword search, such as Bus Controllers
