FT245RQ-REEL - FTDI Chip

Description: USB Interface IC USB to Parallel FIFO Enhanced IC QFN-32

Download FT245RQ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

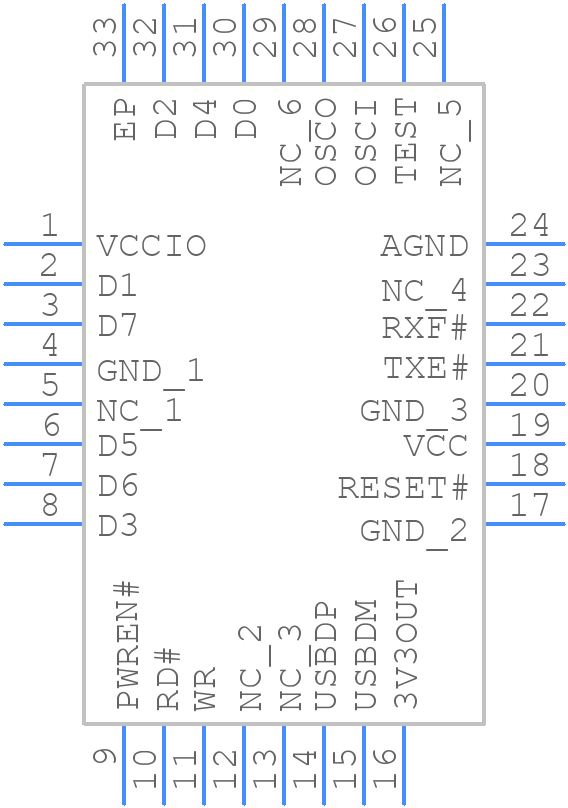

FT245RQ-REEL - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT245RQ-REEL - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32
click to zoom
3D Models
FT245RQ-REEL - FTDI Chip - 3D model - Quad Flat No-Lead - QFN-32
click to zoom

FT245RQ-REEL Details

  • Manufacturer Part Number:

    FT245RQ-REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    ROHS COMPLIANT, QFN-32

  • Pin Count:

    32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
