FT260Q-T - FTDI Chip

Description: USB HID to UART/I2C Bridge WQFN-28 Tray FTDI Chip FT260Q-T, USB Controller, 3.4MBps, HID, I2C, UART, USB 2.0, 1.8 V, 2.5 V, 3.3 V, 5 V, 28-Pin WQFN

Download FT260Q-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

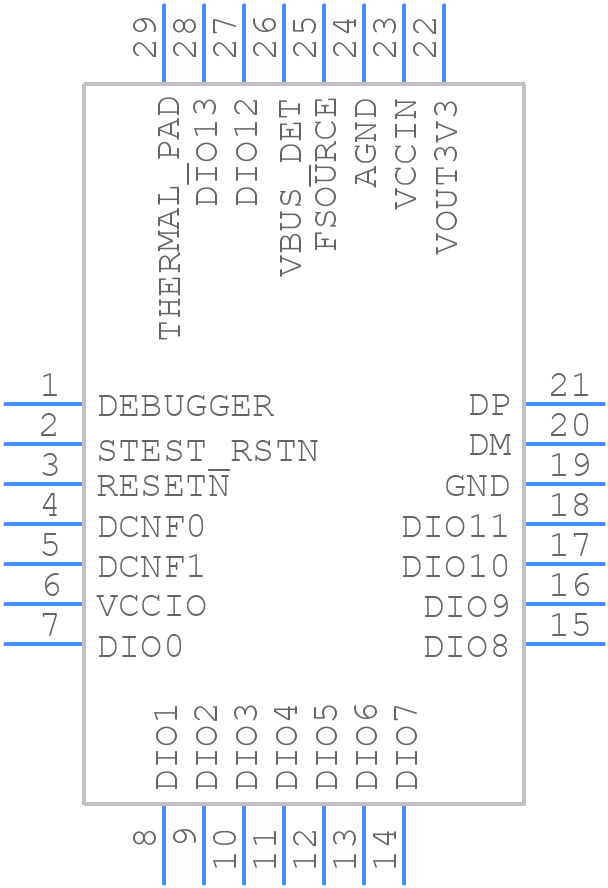

FT260Q-T - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT260Q-T - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN-28
click to zoom
3D Models
FT260Q-T - FTDI Chip - 3D model - Quad Flat No-Lead - WQFN-28
click to zoom

FT260Q-T Details

  • Manufacturer Part Number:

    FT260Q-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    240

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT260Q-T Frequently Asked Questions (FAQs)

  • The maximum cable length supported by FT260Q-T is 3 meters, but it can be extended up to 10 meters using active extension cables or repeaters.
  • No, FT260Q-T is a USB 2.0 device and is not compatible with USB 3.0 applications. For USB 3.0 applications, consider using FT600Q or FT601Q.
  • The FT260Q-T is a USB to UART/I2C/SPI bridge, and the configuration for I2C or SPI interfaces is done through the FTDI Chip's MPSSE (Multi-Protocol Synchronous Serial Engine) commands. Refer to the FTDI Chip's application notes and programming guides for more information.
  • Yes, FT260Q-T is compatible with both 5V and 3.3V systems. The device has a built-in voltage regulator that allows it to operate from a single 5V supply, and it can also be powered from a 3.3V supply with an external voltage regulator.
  • The maximum data transfer rate of FT260Q-T is 12 Mbps, which is the maximum data transfer rate of the USB 2.0 specification.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT260Q-T Overview

Use the download button to access the FT260Q-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT260, or try a keyword search, such as Bus Controllers
