FT260S-R - FTDI Chip

Description: USB Interface IC HID-class USB UART I2C Bridge IC

Download FT260S-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

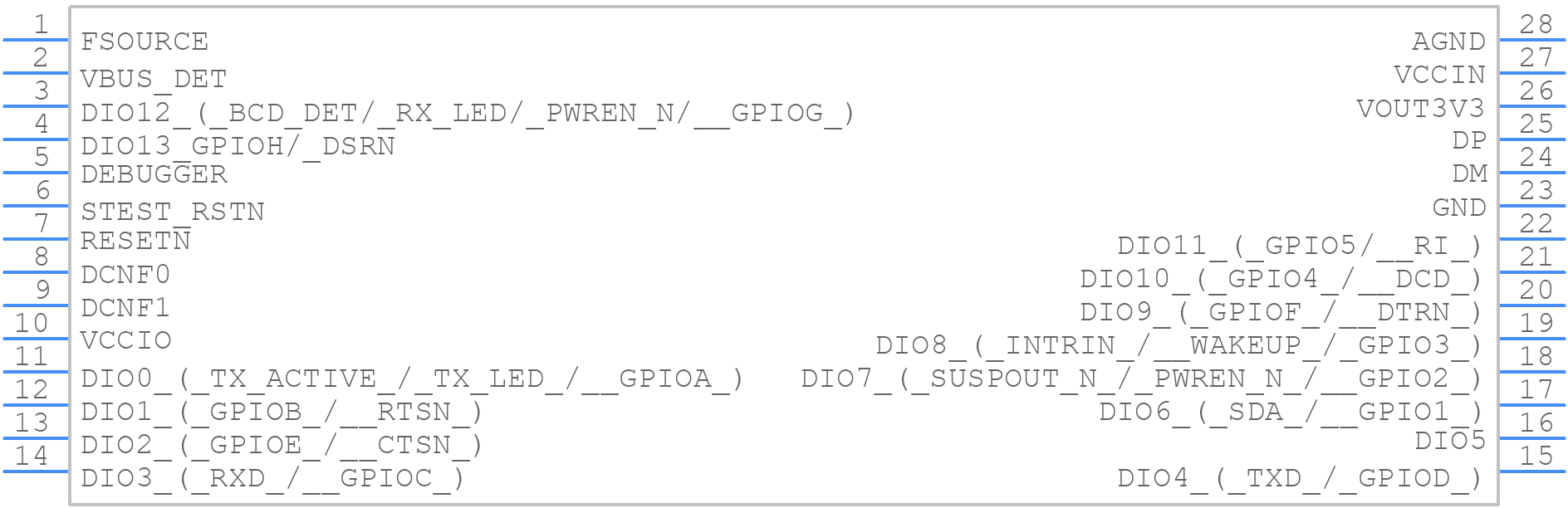

FT260S-R - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT260S-R - FTDI Chip PCB footprint - Small Outline Packages - Small Outline Packages - 28-TSSOP-1
click to zoom
3D Models
FT260S-R - FTDI Chip - 3D model - Small Outline Packages - 28-TSSOP-1
click to zoom

FT260S-R Details

  • Manufacturer Part Number:

    FT260S-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    6.85

  • Additional Feature:

    IT ALSO OPERATES AT 5V NOM SUPPLY

  • Bus Compatibility:

    I2C; UART; USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    0.064 MBps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT260S-R Frequently Asked Questions (FAQs)

  • The maximum cable length supported by FT260S-R is 3 meters (10 feet) for full-speed devices and 1 meter (3.3 feet) for low-speed devices, assuming a good quality cable with proper shielding and termination.
  • Yes, FT260S-R can operate with a 5V power supply, but it's recommended to use a 3.3V power supply for optimal performance and to reduce power consumption.
  • The FT260S-R is a USB-to-UART bridge, and it does not support I2C or SPI modes. It's designed for UART (TTL) communication only. If you need I2C or SPI, you'll need a different chip or a separate I2C/SPI bridge.
  • Yes, FT260S-R is compatible with USB 3.0 ports, but it will operate at USB 2.0 speeds (up to 480 Mbps). It's not designed to take advantage of USB 3.0 speeds (up to 5 Gbps).
  • The maximum baud rate supported by FT260S-R is 12 Mbps (million bits per second). However, the actual achievable baud rate may be limited by the quality of the cable, the device being connected, and the system configuration.
