FTLF1318P2BCL - Finisar

Description: Transceiver Module Ethernet, Fibre Channel 1.25Gbps 1310nm 3V ~ 3.6V LC Duplex Pluggable, SFP

Download FTLF1318P2BCL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

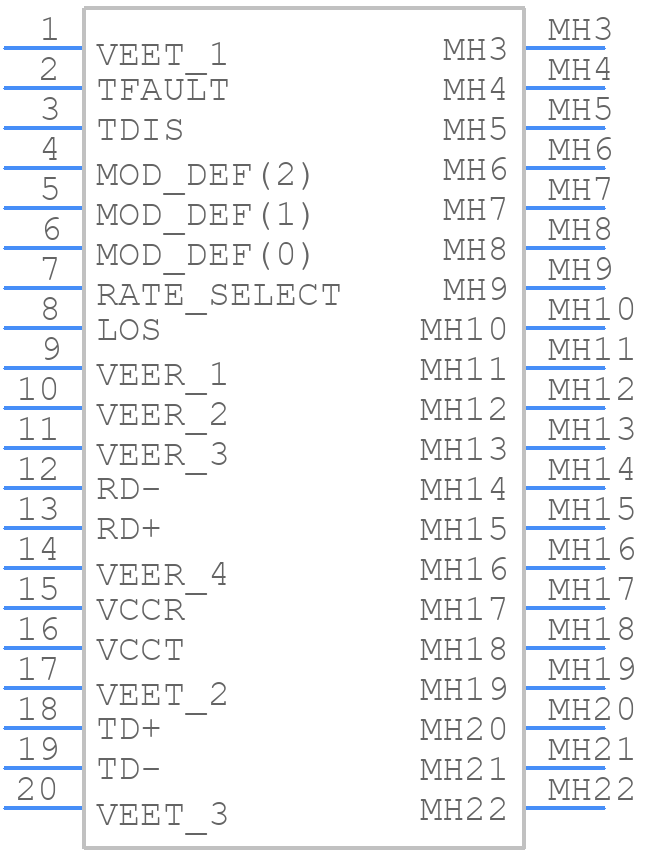

FTLF1318P2BCL - Finisar - PCB symbol
click to zoom
PCB Footprints

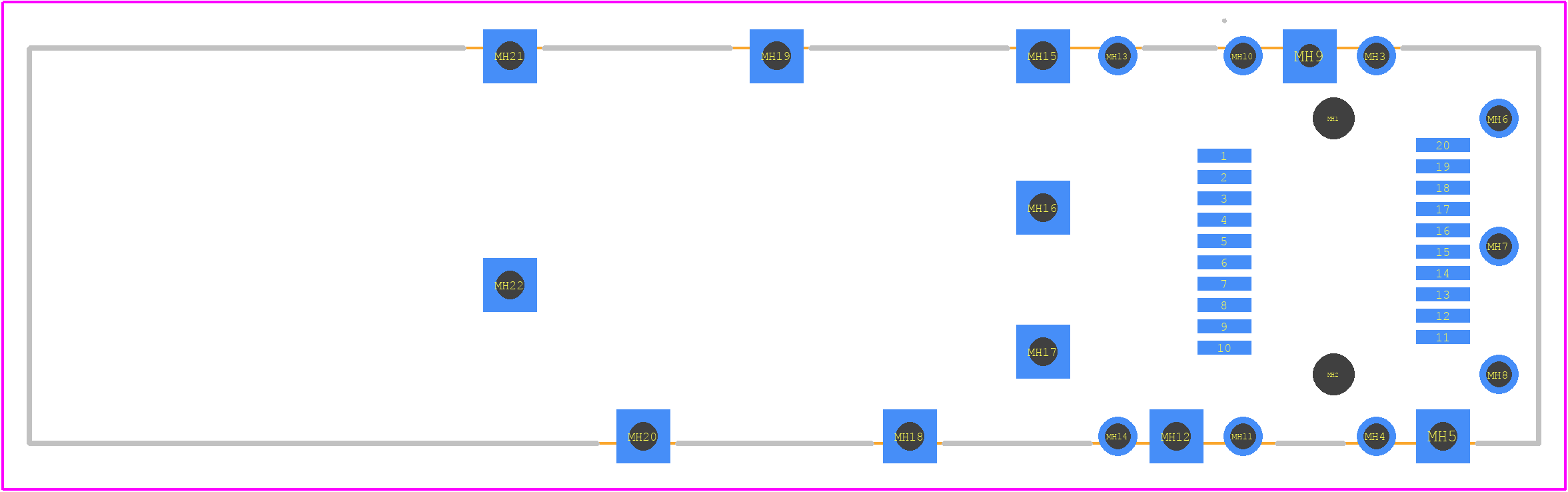

FTLF1318P2BCL - Finisar PCB footprint - Other - Other - FTLF1318P2BCL-4
click to zoom
3D Models
FTLF1318P2BCL - Finisar - 3D model - Other - FTLF1318P2BCL-4
click to zoom

FTLF1318P2BCL Details

  • Manufacturer Part Number:

    FTLF1318P2BCL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    Finisar Corporation

  • Additional Feature:

    IT ALSO OPERATES FROM 1265NM TO 1600NM WAVELENGTH

  • Body Breadth:

    13.72 mm

  • Body Height:

    12.43 mm

  • Body Length or Diameter:

    56.64 mm

  • Communication Standard:

    GBE, ITU-T

  • Connection Type:

    LC CONNECTOR

  • Data Rate (Rx):

    1250 Mbps

  • Data Rate (Tx):

    1250 Mbps

  • Emitter/Detector Type:

    LASER

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    9/125, SMF

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Wavelength-Max:

    1360 nm

  • Operating Wavelength-Min:

    1270 nm

  • Operating Wavelength-Nom:

    1310 nm

  • Optical Power Output-Nom:

    0.5011 mW

  • Return Loss-Min:

    12 dB

  • Sensitivity:

    -19 dBm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    NOT APPLICABLE

FTLF1318P2BCL Frequently Asked Questions (FAQs)

  • Finisar provides a recommended PCB layout and footprint in their application note AN-2151, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and signal integrity.
  • The FTLF1318P2BCL has a SC receptacle optical connector. It's recommended to use a compatible SC plug connector, such as the Finisar FCL-SC-001, and follow proper connector handling and cleaning procedures to prevent damage or contamination.
  • The maximum cable bend radius for the FTLF1318P2BCL is 30 mm (1.18 inches). Exceeding this radius can cause damage to the fiber or affect the module's performance.
  • Yes, the FTLF1318P2BCL is designed to be hot-swappable. However, it's essential to follow proper hot-swap procedures and ensure that the module is properly seated and secured to prevent damage or electrical shock.
  • The recommended storage temperature range for the FTLF1318P2BCL is -40°C to 85°C (-40°F to 185°F), and the recommended storage humidity range is 5% to 95% relative humidity. Exceeding these ranges can affect the module's performance or reliability.
