The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the FTLF8519F2GTL near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 85°C.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, ensure that the module is properly soldered and that the PCB is designed to minimize thermal stress.
Exceeding the maximum power rating can cause permanent damage to the module. To prevent damage, ensure that the input power is within the recommended range, and use proper thermal management to prevent overheating.
To troubleshoot issues, first verify that the module is properly soldered and that the PCB is designed correctly. Then, check the input power and voltage levels, and ensure that the module is operating within the recommended temperature range. If issues persist, consult the datasheet or contact Finisar Corporation's technical support.
The FTLF8519F2GTL is a sensitive component and requires proper ESD protection during handling and assembly. Use ESD-safe materials, follow proper grounding procedures, and handle the module by the edges to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FTLF8519F2GTL Overview

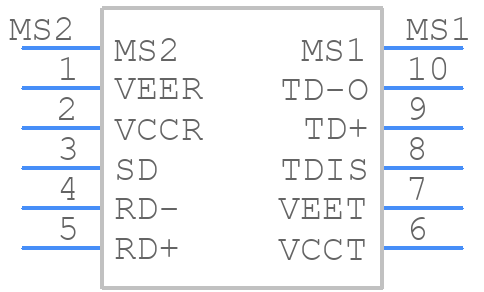

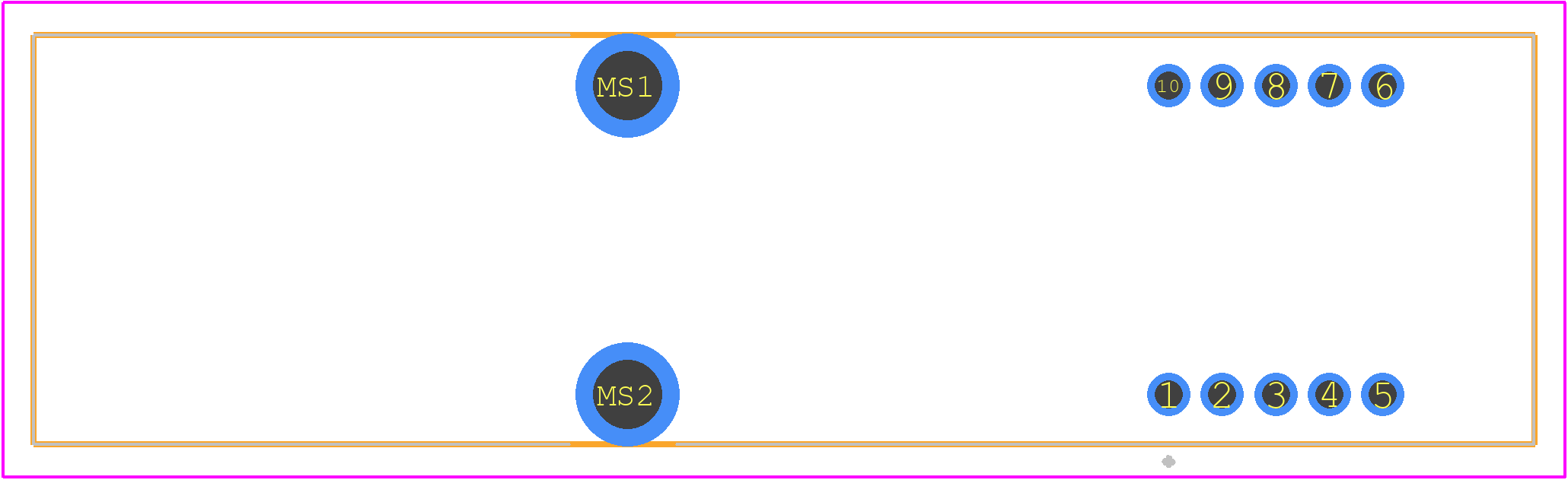

Use the download button to access the FTLF8519F2GTL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTLF8,
or try a keyword search, such as Fiber Optic Transceivers
