The recommended PCB layout involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing thermal vias under the package. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 85°C.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using a thermistor or thermocouple to monitor the temperature and adjust the operating conditions accordingly.
The FTLF8519P3BNL is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, and handle the device by the package body, avoiding contact with the electrical pins.
Yes, the FTLF8519P3BNL can be used in non-telecom applications, but ensure that the operating conditions, including temperature, voltage, and current, are within the recommended specifications. Additionally, consider the specific requirements of your application, such as data rate, distance, and signal integrity.
The FTLF8519P3BNL is typically used in telecom applications, such as 10G Ethernet, SONET/SDH, and Fiber Channel. It's also suitable for high-speed data transmission in data centers, high-performance computing, and other applications requiring high-speed optical interconnects.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FTLF8519P3BNL Overview

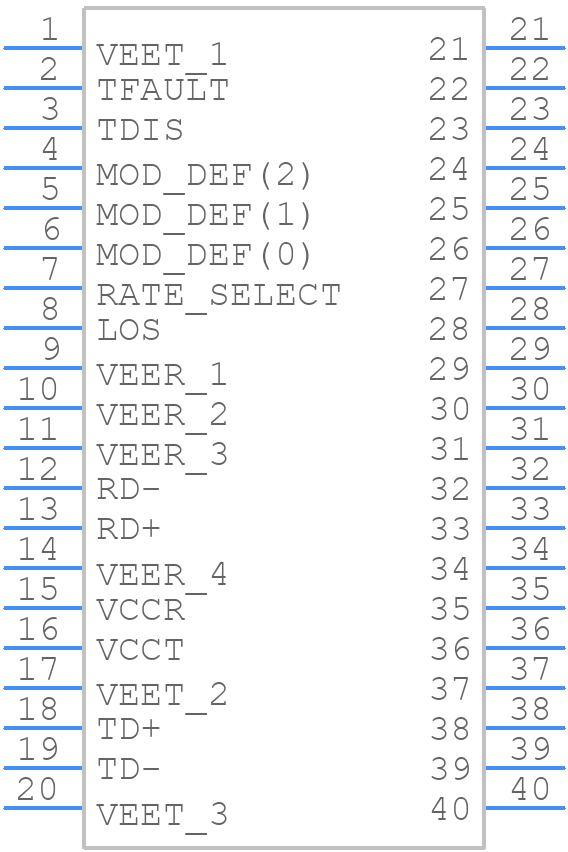

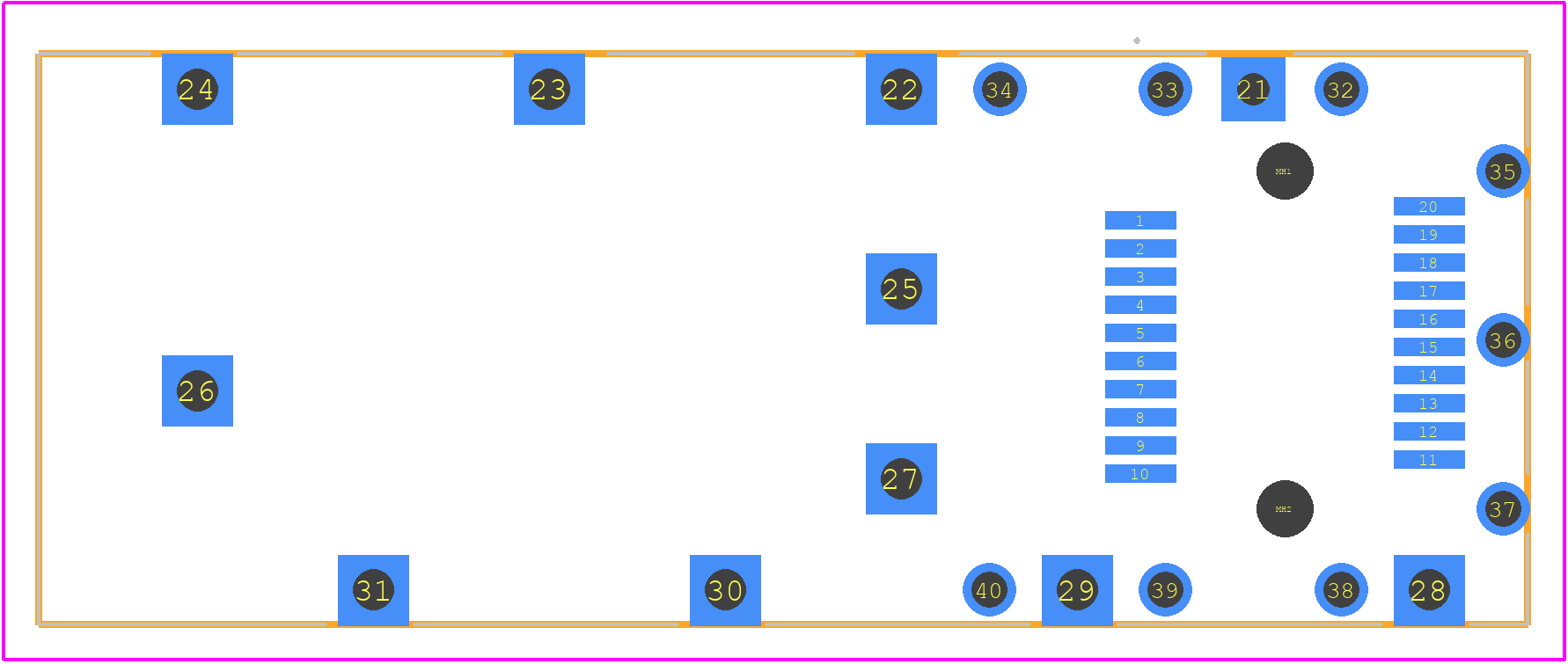

Use the download button to access the FTLF8519P3BNL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTLF8,
or try a keyword search, such as Fiber Optic Transceivers
