The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 85°C.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal stress.
Exceeding the maximum power rating can cause permanent damage to the device. To prevent damage, ensure that the device operates within the recommended power rating, and use proper thermal management and heat sinking to prevent overheating.
To troubleshoot issues, start by verifying that the device is properly soldered and that the PCB is designed correctly. Check the operating conditions, including temperature, voltage, and current. Use optical testing equipment to measure the optical output power and dispersion penalty. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
The device is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, and ensure that the PCB is designed with ESD protection in mind. Follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FTLF8524P3BNL Overview

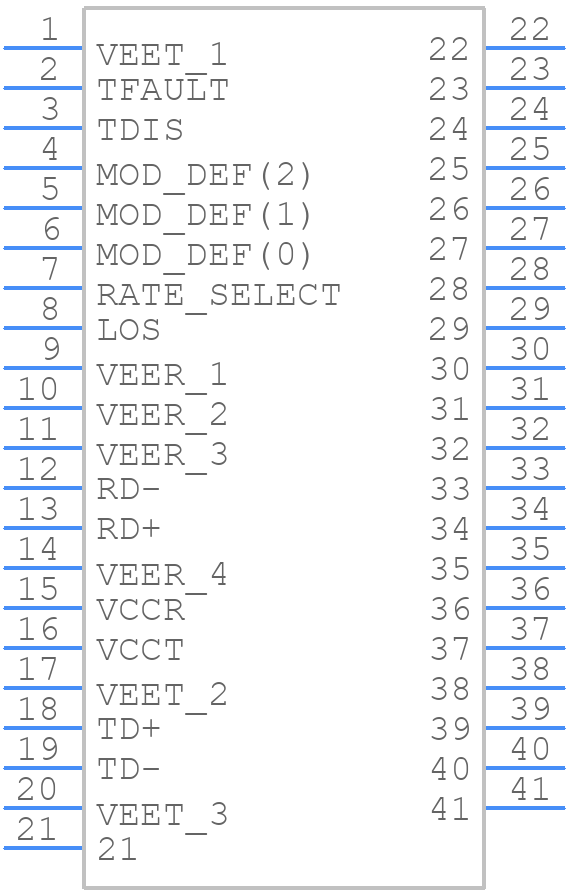

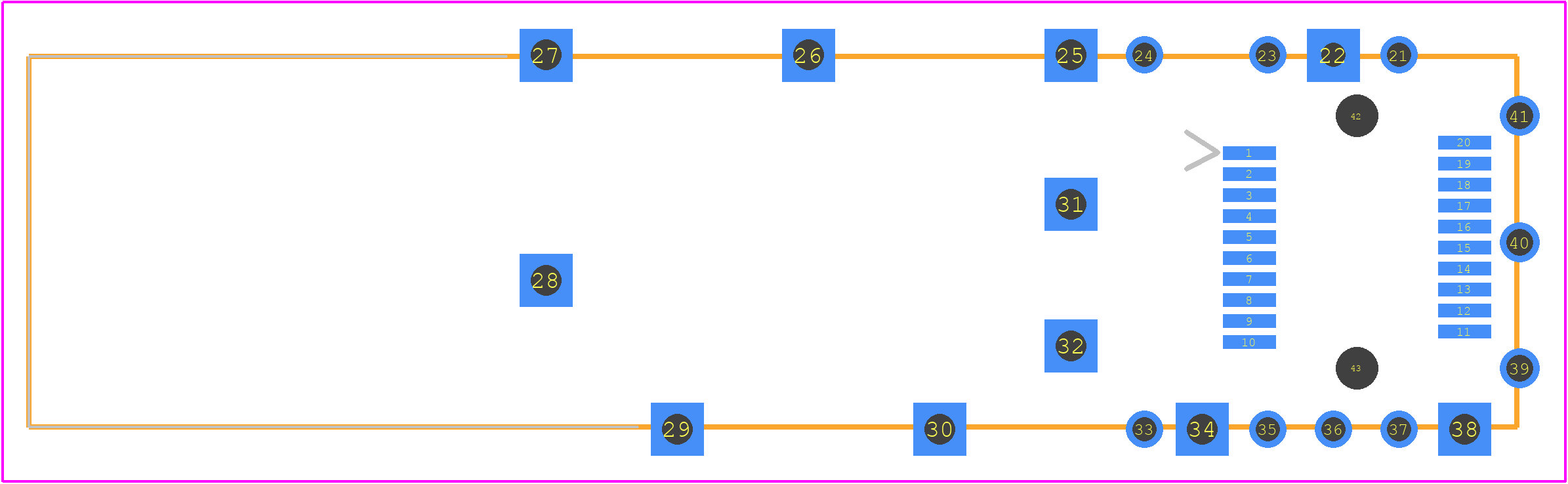

Use the download button to access the FTLF8524P3BNL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTLF8,
or try a keyword search, such as Fiber Optic Transceivers
