FTLX1370W4BTL - Finisar

Description: Fiber Optic Transmitters, Receivers, Transceivers 1310nm FP, 10G Wireless, 1.2-9.8304 Gb/s transceiver, RoHS compliant, single mode, pluggable SFP+ footprint, 3.3V, LC connector, bail, digital diagnostics, -40/85 C operation, 1.4km

Download FTLX1370W4BTL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

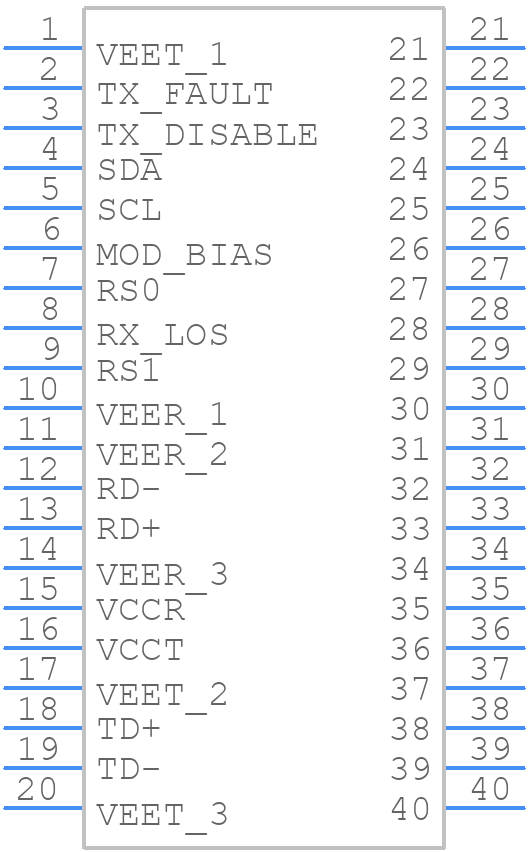

FTLX1370W4BTL - Finisar - PCB symbol
click to zoom
PCB Footprints

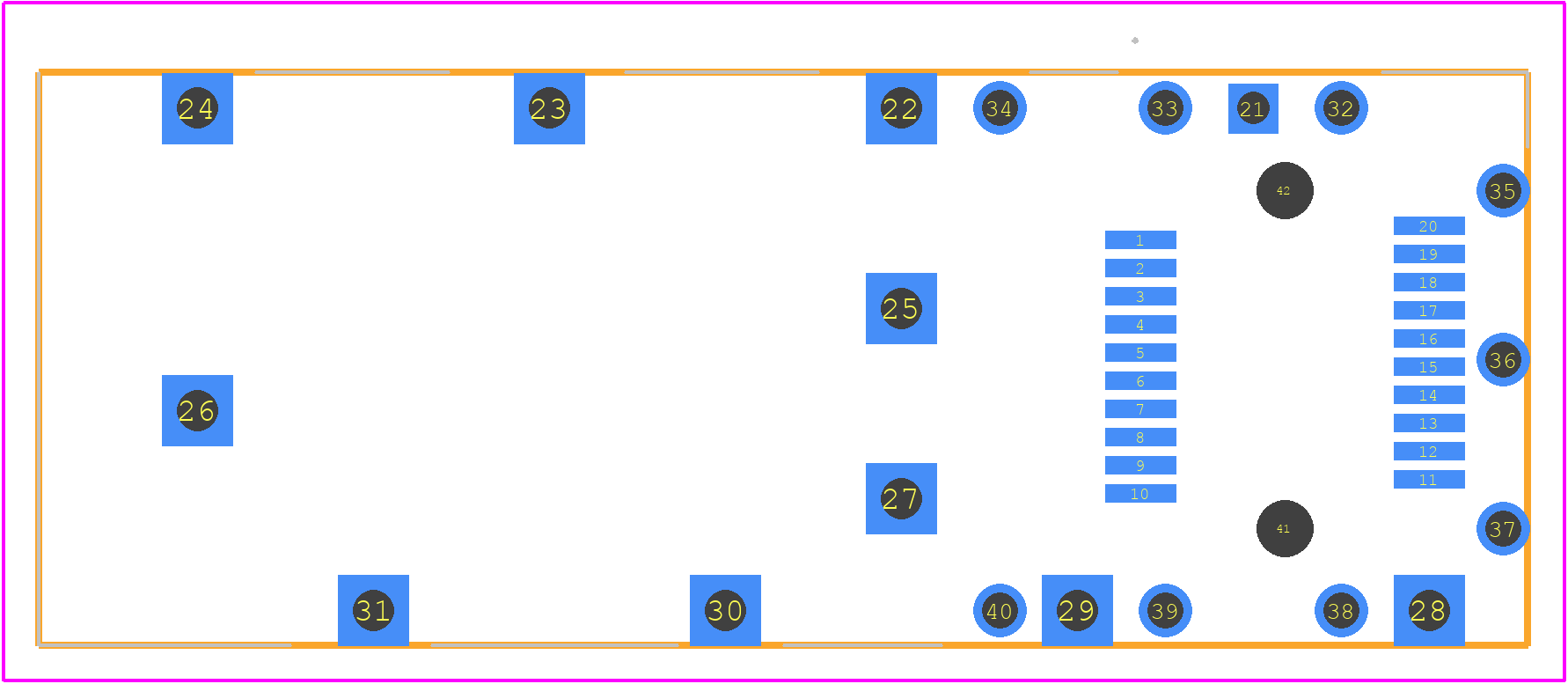

FTLX1370W4BTL - Finisar PCB footprint - Other - Other - FTLX1370W4BTL-3
click to zoom
3D Models
FTLX1370W4BTL - Finisar - 3D model - Other - FTLX1370W4BTL-3
click to zoom

FTLX1370W4BTL Details

  • Manufacturer Part Number:

    FTLX1370W4BTL

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    Finisar Corporation

  • Fiber Optic Device Type:

    TRANSCEIVER

FTLX1370W4BTL Frequently Asked Questions (FAQs)

  • The recommended operating case temperature range for the FTLX1370W4BTL is 0°C to 70°C.
  • When working with the FTLX1370W4BTL, it's essential to follow proper eye safety precautions, including wearing safety glasses or goggles, avoiding direct exposure to the laser beam, and ensuring the laser is properly terminated when not in use.
  • The maximum cable bend radius for the FTLX1370W4BTL is 30 mm to prevent damage to the fiber optic cable.
  • Yes, the FTLX1370W4BTL is designed to be hot-swappable, but it's essential to follow proper procedures to avoid damaging the module or the host system.
  • The recommended storage temperature range for the FTLX1370W4BTL is -40°C to 85°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FTLX1370W4BTL Overview

Use the download button to access the FTLX1370W4BTL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTLX1, or try a keyword search, such as Fiber Optic Transceivers
