RECEIVER WAVELENGHT IS 840 TO 860 NM, SFF-8431, SFF-8432, SFF-8472, IT ALSO HAVE DATA RATE OF 1250 MBPS FOR 1 G OPERATION
Body Breadth:
13.7 mm
Body Height:
8.5 mm
Body Length or Diameter:
56.5 mm
Communication Standard:
GBE
Connection Type:
LC CONNECTOR
Data Rate (Rx):
10300 Mbps
Data Rate (Tx):
10300 Mbps
Emitter/Detector Type:
VCSEL LASER
Fiber Optic Device Type:
TRANSCEIVER
Fiber Type:
50/125, MMF
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
70 °C
Operating Wavelength-Max:
860 nm
Operating Wavelength-Min:
840 nm
Operating Wavelength-Nom:
850 nm
Optical Power Output-Nom:
0.298 mW
Return Loss-Min:
12 dB
Sensitivity:
-17 dBm
Supply Voltage-Max:
3.46 V
Supply Voltage-Min:
3.14 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO
FTLX8571D3BCV Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for optimal performance can be found in the Finisar application note AN-2151, which provides guidelines for PCB design, thermal management, and component placement.
To ensure reliable operation over the entire operating temperature range, it is recommended to follow the recommended operating conditions, including temperature, voltage, and current, as specified in the datasheet. Additionally, proper thermal management and PCB design are crucial to ensure reliable operation.
The recommended drive conditions for the laser diode can be found in the datasheet, including the recommended bias current, modulation current, and voltage. It is also recommended to follow the guidelines provided in the Finisar application note AN-2151 for laser diode drive conditions.
To troubleshoot issues with the module, it is recommended to follow a systematic approach, including checking the power supply, PCB layout, and component values. Additionally, Finisar provides a troubleshooting guide in the application note AN-2151, which provides guidance on identifying and resolving common issues.
The FTLX8571D3BCV module is RoHS and REACH compliant, and meets the requirements of various environmental and regulatory standards, including Telcordia GR-468 and IEC 62133. For specific compliance information, please consult the datasheet and Finisar's environmental and regulatory compliance documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FTLX8571D3BCV Overview

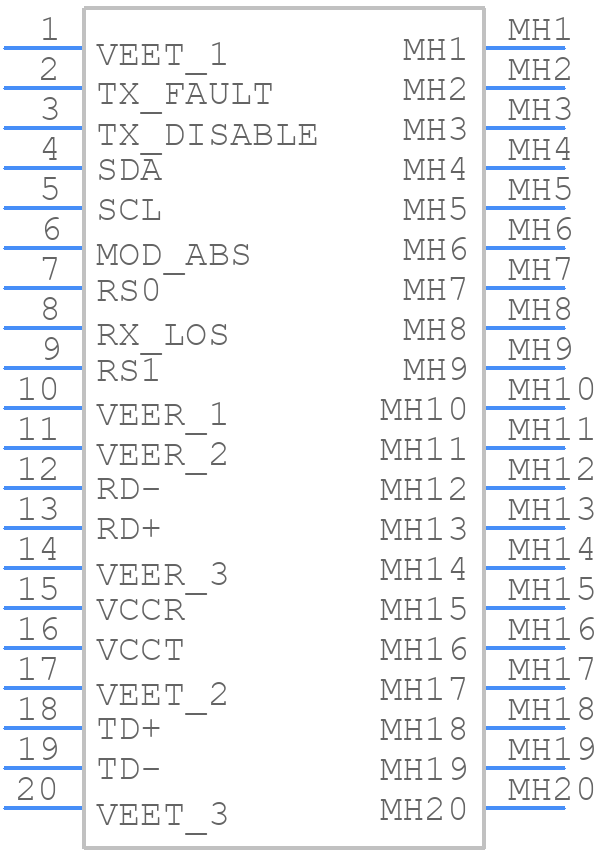

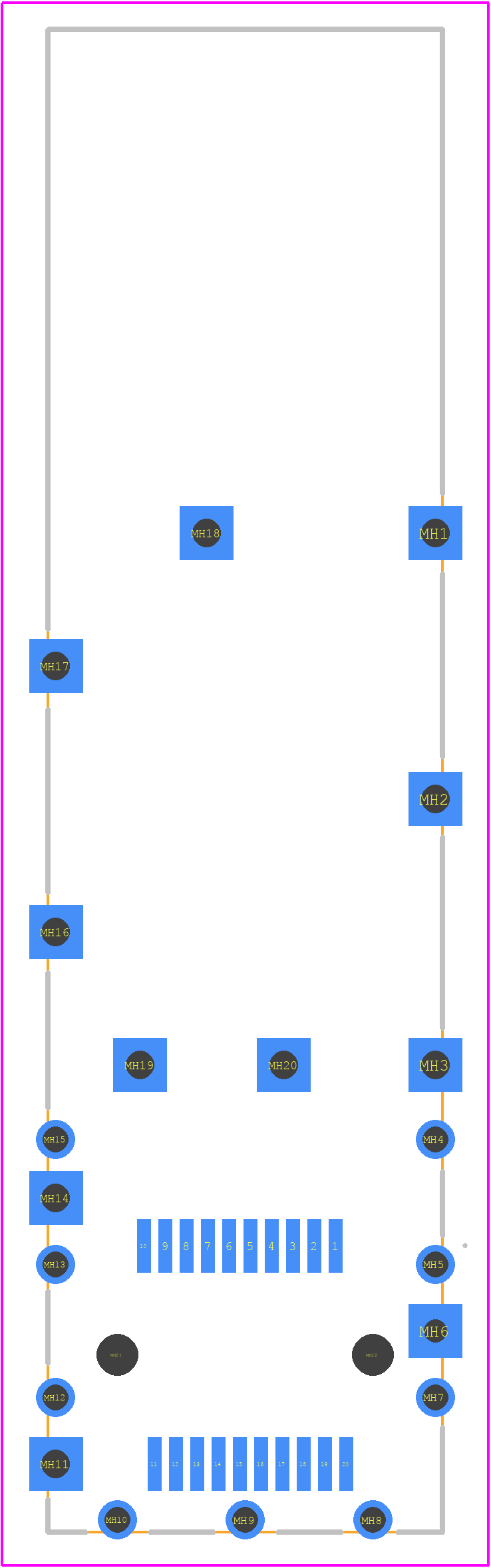

Use the download button to access the FTLX8571D3BCV schematic symbol, PCB footprint, and 3D model.
