FTR-103-55-S-D-TR - SAMTEC

Description: Headers & Wire Housings Surface Mount Micro Header, 0.050 x 0.100 Pitch

Download FTR-103-55-S-D-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

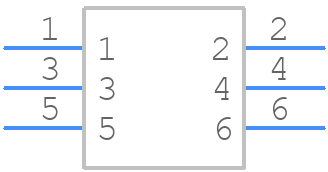

FTR-103-55-S-D-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

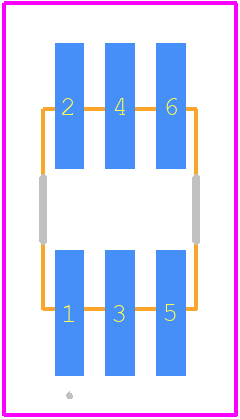

FTR-103-55-S-D-TR - SAMTEC PCB footprint - Other - Other - FTR-103-55-S-D-TR-5
click to zoom
3D Models
FTR-103-55-S-D-TR - SAMTEC - 3D model - Other - FTR-103-55-S-D-TR-5
click to zoom

FTR-103-55-S-D-TR Details

  • Manufacturer Part Number:

    FTR-103-55-S-D-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    12

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Rated Current (Signal):

    3.8 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

FTR-103-55-S-D-TR Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the FTR-103-55-S-D-TR connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the FTR-103-55-S-D-TR connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the FTR-103-55-S-D-TR connector is compatible with lead-free soldering processes. Samtec recommends following the IPC J-STD-020D standard for lead-free soldering.
  • The recommended mating cycle for the FTR-103-55-S-D-TR connector is 500 cycles. Exceeding this cycle count may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FTR-103-55-S-D-TR Overview

Use the download button to access the FTR-103-55-S-D-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTR-1, or try a keyword search, such as Headers and Edge Type Connectors
