FTSH-105-01-LTL-DV-K - SAMTEC

Description: 10 Position, High Reliability Header Strips, 0.050" pitch

Download FTSH-105-01-LTL-DV-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

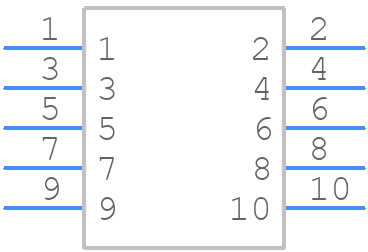

FTSH-105-01-LTL-DV-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

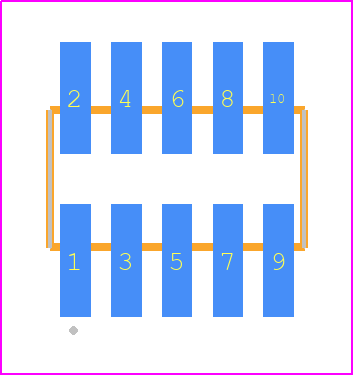

FTSH-105-01-LTL-DV-K - SAMTEC PCB footprint - Other - Other - FTSH-105-XX-YYY-DV-K
click to zoom
3D Models
FTSH-105-01-LTL-DV-K - SAMTEC - 3D model - Other - FTSH-105-XX-YYY-DV-K
click to zoom

FTSH-105-01-LTL-DV-K Details

  • Manufacturer Part Number:

    FTSH-105-01-LTL-DV-K

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TUBE

  • Rated Current (Signal):

    4.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

FTSH-105-01-LTL-DV-K Frequently Asked Questions (FAQs)

  • The recommended mating sequence for FTSH-105-01-LTL-DV-K is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FTSH-105-01-LTL-DV-K is designed for high-speed applications up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
  • The FTSH-105-01-LTL-DV-K has an operating temperature range of -40°C to 105°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the FTSH-105-01-LTL-DV-K is compatible with lead-free soldering processes. Samtec Inc uses a lead-free finish on this connector, making it RoHS-compliant.
  • The recommended torque for the screw locks on FTSH-105-01-LTL-DV-K is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector or the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FTSH-105-01-LTL-DV-K Overview

Use the download button to access the FTSH-105-01-LTL-DV-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTSH-, or try a keyword search, such as Headers and Edge Type Connectors
