FTSH-123-01-L-DH footprint, schematic symbol and 3D model by SAMTEC

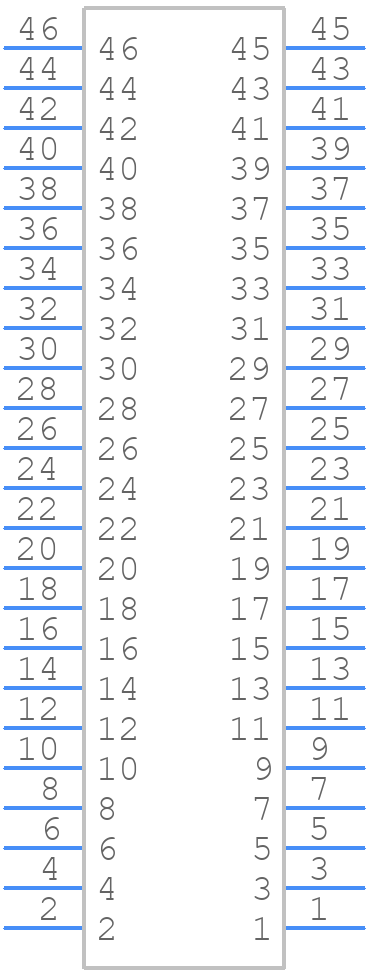

Symbol

click to zoom

PCB Footprints

FTSH-123-01-L-DH - SAMTEC PCB footprint - Other - Other - FTSH-123-XX-YYY-DH

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTSH-123-01-L-DH
Part Number FTSH-123-01-L-DH
Manufacturer SAMTEC
Pin Count 46
Part Category Connector
Package Category Other
Footprint Name Other - FTSH-123-XX-YYY-DH
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FTSH-123-01-L-DH Details

Manufacturer Part Number:
FTSH-123-01-L-DH
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Direct Group:
CH300304020241110011009701040060301YYYY010202
Similar Group:
CH300304020241110011009701040060301YYYY
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
12
Additional Feature:
E.L.P.
Body Breadth:
0.135 inch
Body Depth:
0.309 inch
Body Length:
1.15 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
280VAC V
Durability:
500 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.05 mm
Packing Method:
TUBE
Plating Thickness:
10u inch
Rated Current (Signal):
3.4 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
46
UL Flammability Code:
94V-0

FTSH-123-01-L-DH Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FTSH-123-01-L-DH connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the FTSH-123-01-L-DH connector is 125°C (257°F) according to Samtec's datasheet and application notes.
The FTSH-123-01-L-DH connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors for such applications.
The recommended mating cycle for the FTSH-123-01-L-DH connector is 500-1000 cycles according to Samtec's application notes and reliability testing.
