For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to route the USB signals as differential pairs with a 90-ohm impedance. Additionally, keep the FUSB307BMPX as close to the USB connector as possible and use a common mode filter to reduce EMI.
To ensure EMI compliance, use a common mode filter, such as a ferrite bead or a common mode choke, in the USB signal path. Additionally, ensure proper PCB layout and routing, and use shielding or a metal enclosure to contain EMI emissions.
The FUSB307BMPX supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality, shielded cables to minimize signal degradation.
The FUSB307BMPX can be powered from the USB bus or an external power source. For optimal performance, use a low-dropout regulator (LDO) to regulate the voltage supply, and ensure that the power supply can provide the required current.
The FUSB307BMPX has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB307BMPX Overview

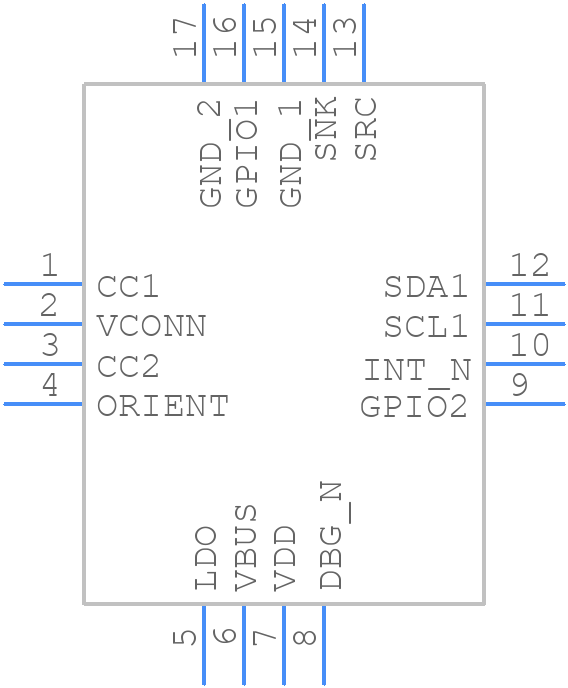

Use the download button to access the FUSB307BMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Bus Controllers
