A good PCB layout for FUSB307BVMPX involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure EMI compliance, use a shielded USB connector, keep the USB traces away from the PCB edge, and use a common-mode choke or ferrite bead on the USB lines. Additionally, follow good PCB layout practices and use a metal enclosure to reduce EMI radiation.
The maximum cable length supported by FUSB307BVMPX is 3 meters (10 feet) for USB 2.0 and 1 meter (3.3 feet) for USB 3.2 Gen 1. However, the actual cable length may vary depending on the specific application and cable quality.
FUSB307BVMPX has an integrated power switch that can be controlled by the USB host. The device can also be configured to automatically switch between bus-powered and self-powered modes. Additionally, the device has overcurrent protection and undervoltage lockout to prevent damage from power surges.
FUSB307BVMPX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with good thermal conductivity, and the ambient temperature should be kept below 85°C. A heat sink or thermal pad may be required for high-power applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB307BVMPX Overview

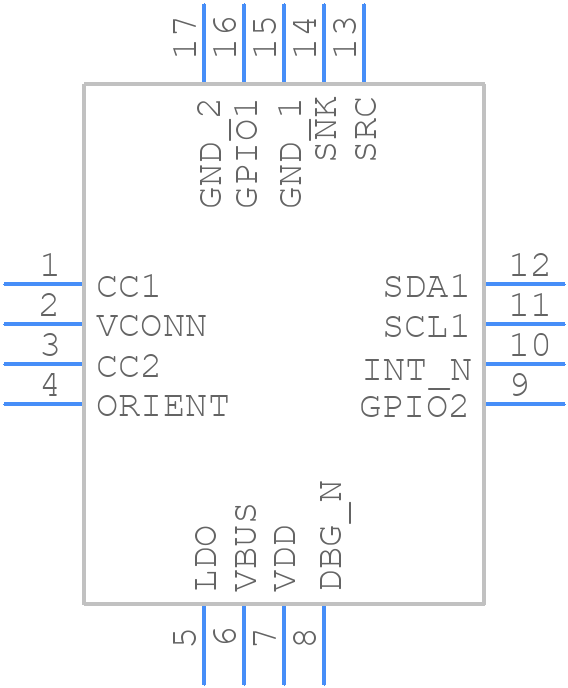

Use the download button to access the FUSB307BVMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Bus Controllers
