FX1-144S-1.27DSL(71) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

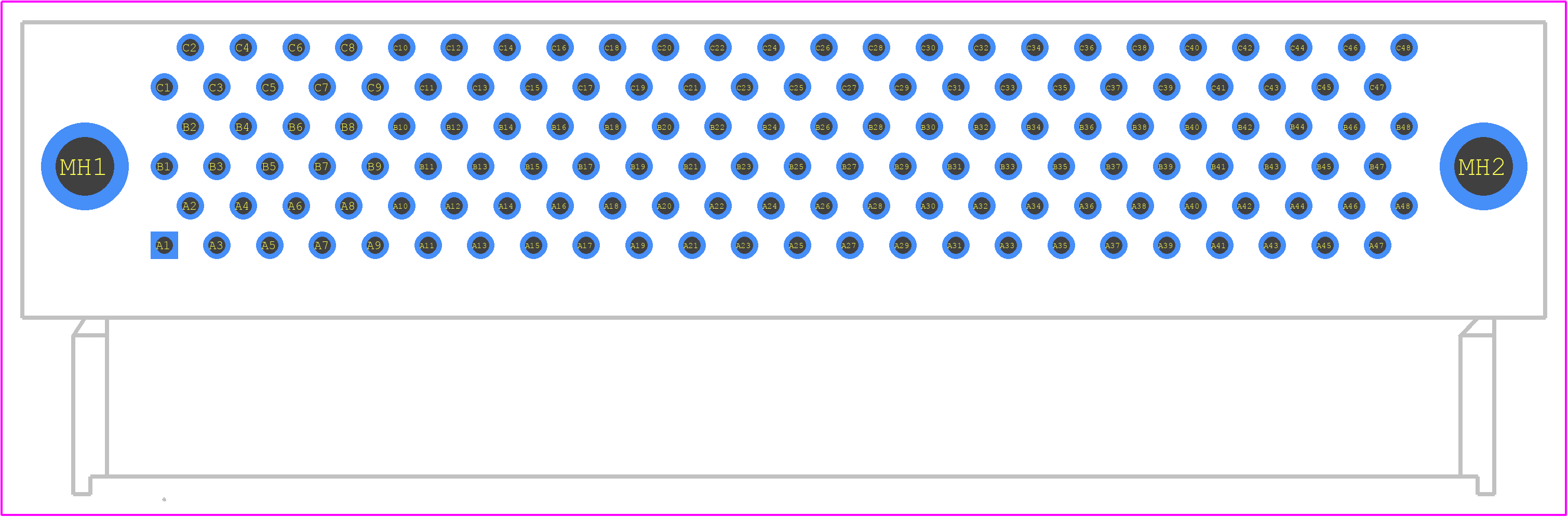

FX1-144S-1.27DSL(71) - Hirose PCB footprint - Other - Other - FX1-144S-1.27DSL(71)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FX1-144S-1.27DSL(71)
Part Number FX1-144S-1.27DSL(71)
Manufacturer Hirose
Pin Count 146
Part Category Connector
Package Category Other
Footprint Name Other - FX1-144S-1.27DSL(71)-1
Released Date Sep 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FX1-144S-1.27DSL(71) Details

Manufacturer Part Number:
FX1-144S-1.27DSL(71)
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
23 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
3
Connector Type:
BOARD CONNECTOR

FX1-144S-1.27DSL(71) Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
Yes, the FX1-144S-1.27DSL(71) connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
The maximum operating temperature for the FX1-144S-1.27DSL(71) connector is 125°C, with a temperature range of -40°C to 125°C for storage.
Yes, the FX1-144S-1.27DSL(71) connector is compatible with lead-free soldering, with a peak soldering temperature of 260°C.
The recommended torque for the FX1-144S-1.27DSL(71) connector's screw locks is 0.5 N·m to 1.5 N·m.

Trust Checks

Community Provided

System Verified

Community Approved

FX1-144S-1.27DSL(71) Overview

Use the download button to access the FX1-144S-1.27DSL(71) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FX1-1, or try a keyword search, such as Headers and Edge Type Connectors
