The recommended torque value is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the screw locks.
Yes, the FX15S-41S-0.5SH is designed to withstand vibrations and is suitable for use in high-vibration environments.
The operating temperature range for the FX15S-41S-0.5SH is -40°C to 105°C (-40°F to 221°F).
Yes, the FX15S-41S-0.5SH is designed for automated assembly and can be used with pick-and-place machines.
The recommended wire size for the FX15S-41S-0.5SH is AWG 24 to AWG 30.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FX15S-41S-0.5SH Overview

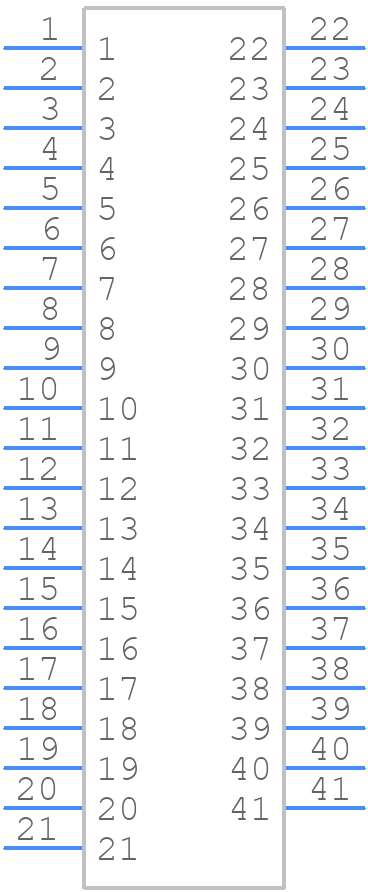

Use the download button to access the FX15S-41S-0.5SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX15S,
or try a keyword search, such as Headers and Edge Type Connectors
