The recommended torque value is 0.5 N·m to 1.5 N·m (5-15 in-lbs) for the screws on the FX15SC-41S-0.5SH connector.
Yes, the FX15SC-41S-0.5SH connector is designed to withstand high-vibration environments and is suitable for applications such as automotive, industrial, and aerospace.
Yes, the FX15SC-41S-0.5SH connector is designed to operate in harsh environments, including high temperatures up to 125°C (257°F) and high humidity. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet.
The FX15SC-41S-0.5SH connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the FX15SC-41S-0.5SH connector is designed to be compatible with automated assembly and inspection systems, making it suitable for high-volume production environments.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FX15SC-41S-0.5SH Overview

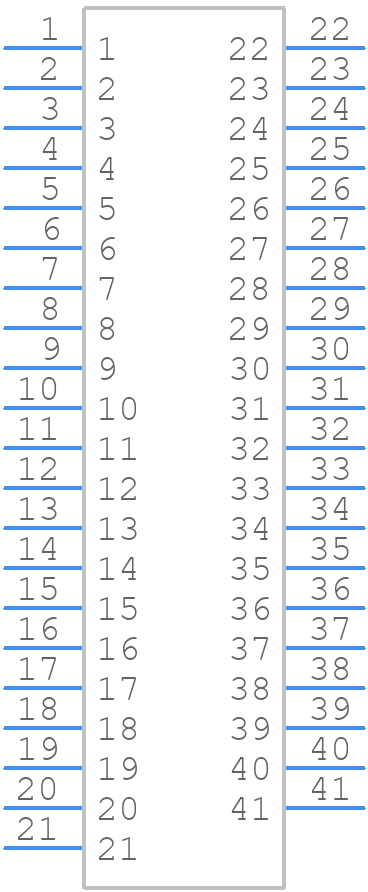

Use the download button to access the FX15SC-41S-0.5SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX15S,
or try a keyword search, such as Headers and Edge Type Connectors
