The recommended torque value is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the screw locks.
Yes, the FX15SC-51S-0.5SH is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific application requirements.
The operating temperature range for the FX15SC-51S-0.5SH is -40°C to 105°C (-40°F to 221°F).
The FX15SC-51S-0.5SH has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific environmental requirements.
The FX15SC-51S-0.5SH has a mating cycle life of 500 cycles.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FX15SC-51S-0.5SH Overview

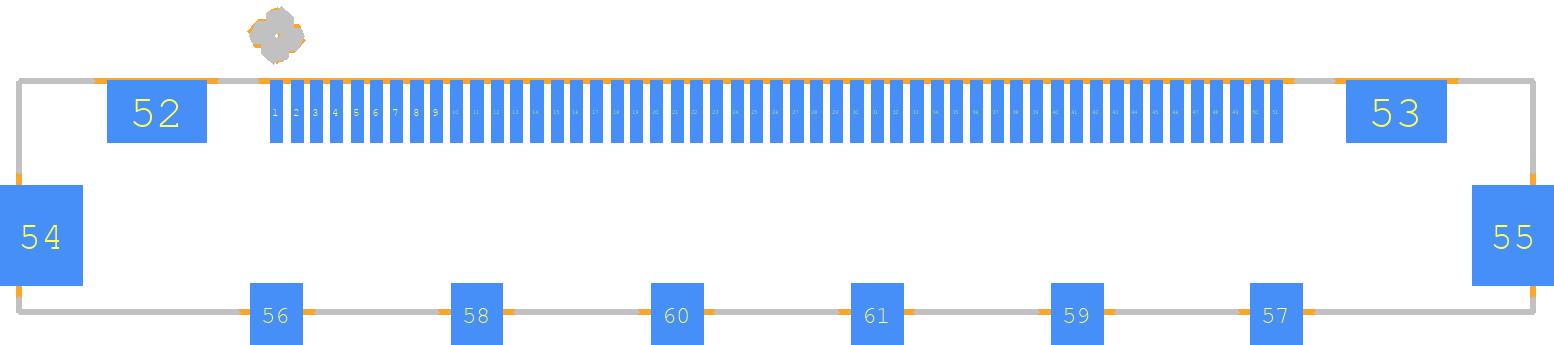

Use the download button to access the FX15SC-51S-0.5SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX15S,
or try a keyword search, such as Headers and Edge Type Connectors
