FX18-100S-0.8SH - Hirose

Description: Hirose, FunctionMAX FX18 0.8mm Pitch 100 Way 2 Row Right Angle PCB Socket, Surface Mount, Solder Termination

Download FX18-100S-0.8SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX18-100S-0.8SH - Hirose - PCB symbol
click to zoom
PCB Footprints

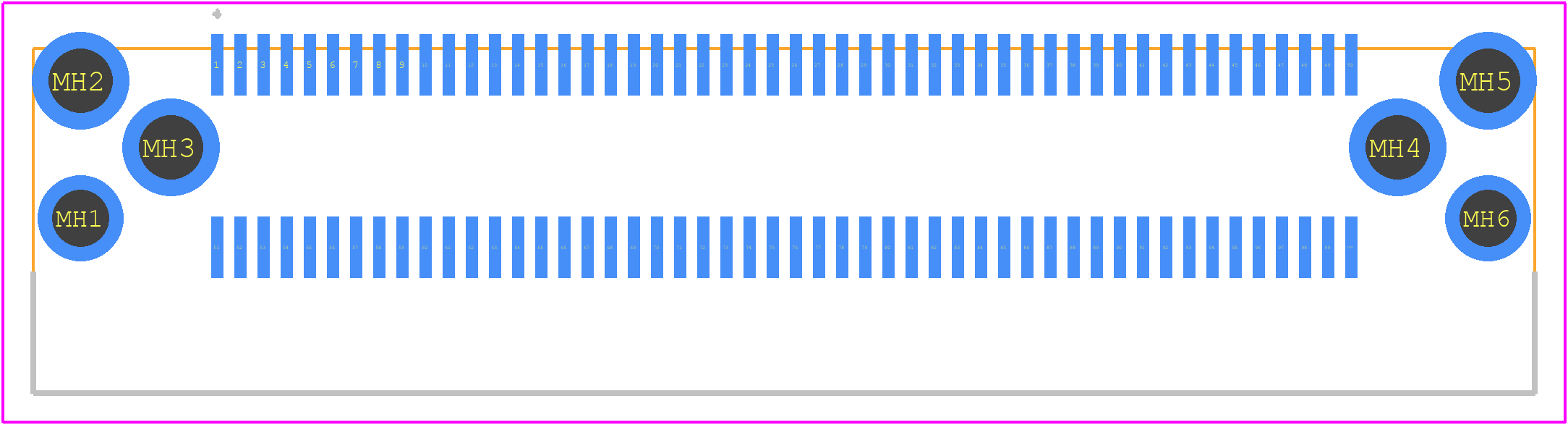

FX18-100S-0.8SH - Hirose PCB footprint - Other - Other - FX18-100S-0.8SH-2
click to zoom
3D Models
FX18-100S-0.8SH - Hirose - 3D model - Other - FX18-100S-0.8SH-2
click to zoom

FX18-100S-0.8SH Details

  • Manufacturer Part Number:

    FX18-100S-0.8SH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.75

  • Connector Type:

    BOARD STACKING CONNECTOR

FX18-100S-0.8SH Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 15 lbf·in) for the M2 screws.
  • Yes, the FX18-100S-0.8SH connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz.
  • Yes, the FX18-100S-0.8SH connector is compatible with lead-free soldering processes, with a recommended peak temperature of 260°C (500°F) for 10 seconds.
  • The minimum bend radius for the FX18-100S-0.8SH connector is 2 mm (0.079 in) to prevent damage to the cable or connector.
  • Yes, the FX18-100S-0.8SH connector is designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F) and can withstand humidity up to 90% RH.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX18-100S-0.8SH Overview

Use the download button to access the FX18-100S-0.8SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18-, or try a keyword search, such as Headers and Edge Type Connectors
