FX18-140P-0.8SV - Hirose

Description: Board to Board & Mezzanine Connectors 0.8MM 140P HDR STRT SMT 10 HGT

Download FX18-140P-0.8SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX18-140P-0.8SV - Hirose - PCB symbol
click to zoom
PCB Footprints

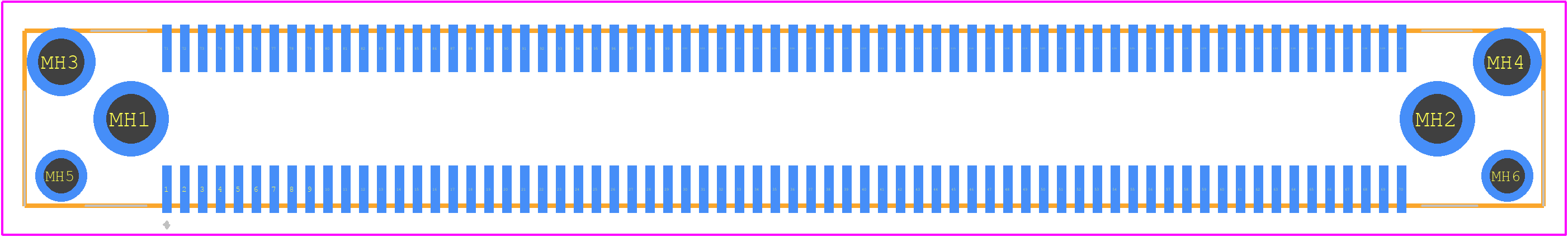

FX18-140P-0.8SV - Hirose PCB footprint - Other - Other - FX18-140P-0.8SV-2
click to zoom
3D Models
FX18-140P-0.8SV - Hirose - 3D model - Other - FX18-140P-0.8SV-2
click to zoom

FX18-140P-0.8SV Details

  • Manufacturer Part Number:

    FX18-140P-0.8SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

FX18-140P-0.8SV Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the M2 screws.
  • Yes, the FX18-140P-0.8SV connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific application requirements.
  • The maximum operating temperature range for the FX18-140P-0.8SV connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the FX18-140P-0.8SV connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended mating cycle for the FX18-140P-0.8SV connector is 500 cycles.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX18-140P-0.8SV Overview

Use the download button to access the FX18-140P-0.8SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18-, or try a keyword search, such as Headers and Edge Type Connectors
