- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FX18-40S-0.8SH
- Part Number FX18-40S-0.8SH
- Manufacturer Hirose
- Pin Count 46
- Part Category Connector
- Package Category Other

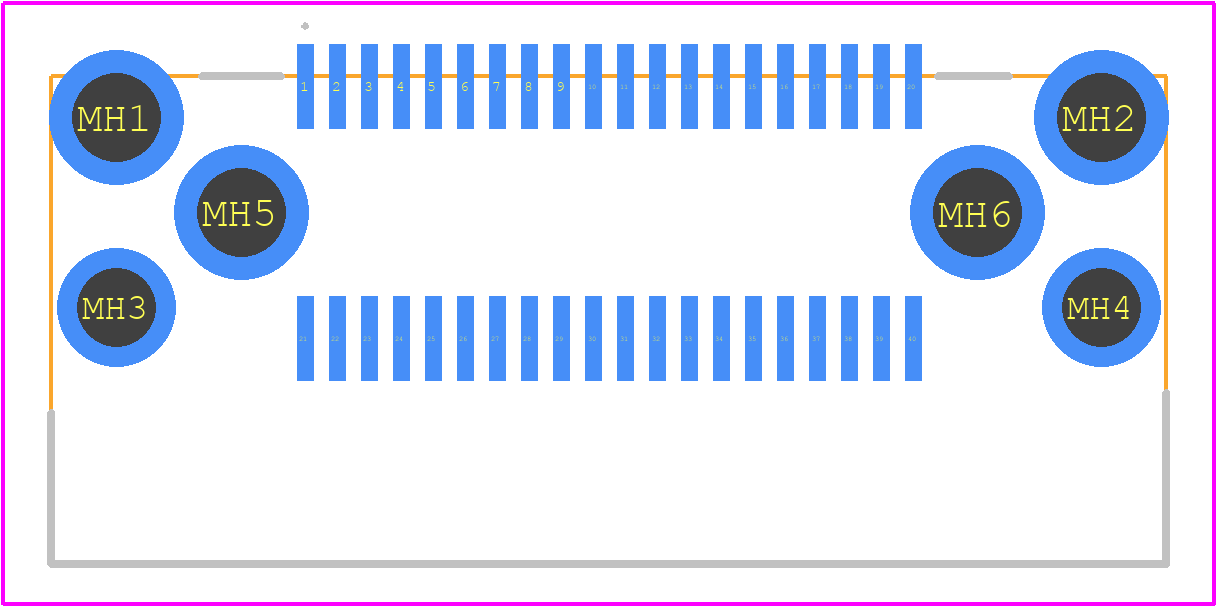

- Footprint Name Other - FX18-40S-0.8SH-1
- Released Date Dec 13, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FX18-40S-0.8SH Details
-
Manufacturer Part Number:
FX18-40S-0.8SH
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8.7
-
Connector Type:
BOARD STACKING CONNECTOR
FX18-40S-0.8SH Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the M2 screws.
-
Yes, the FX18-40S-0.8SH connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
-
The FX18-40S-0.8SH connector is rated for operating temperatures up to 125°C (257°F). However, it's recommended to derate the current rating and consult with the manufacturer for specific high-temperature applications.
-
The FX18-40S-0.8SH connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for continuous exposure to water or harsh chemicals. Consult with the manufacturer for specific environmental requirements.
-
The recommended mating cycle for the FX18-40S-0.8SH connector is up to 500 mating cycles. However, this may vary depending on the application and usage. Consult with the manufacturer for specific guidance.
Trust Checks
Community Provided
System Verified
Community Approved
FX18-40S-0.8SH Overview

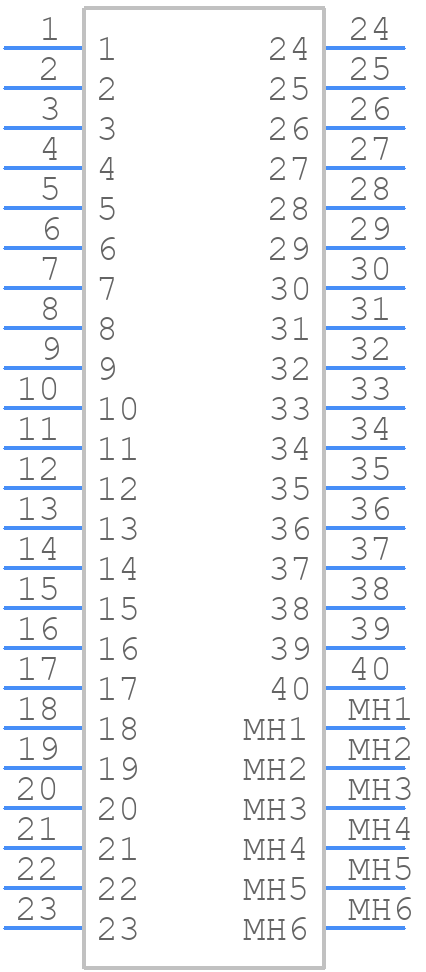

Use the download button to access the FX18-40S-0.8SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18-,
or try a keyword search, such as Headers and Edge Type Connectors
