Part Image

FX18-80P-0.8SV - Hirose

Description: Hirose, FunctionMAX FX18, 80 Way, 2 Row, Straight PCB Header

Download FX18-80P-0.8SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

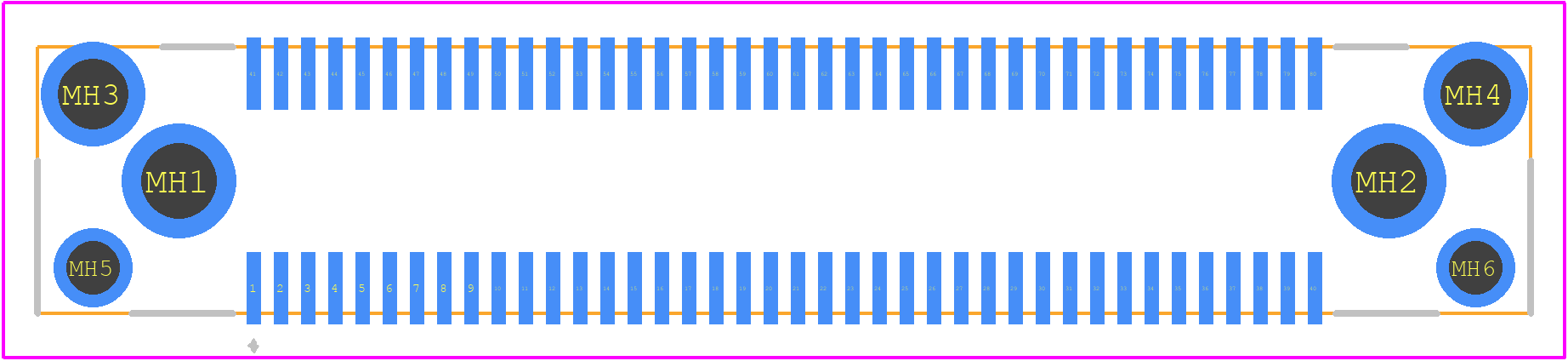

FX18-80P-0.8SV - Hirose PCB footprint - Other - Other - FX18-80P-0.8SV-2
click to zoom
3D Models
FX18-80P-0.8SV - Hirose  - 3D model - Other - FX18-80P-0.8SV-2
click to zoom

FX18-80P-0.8SV Details

  • Manufacturer Part Number:

    FX18-80P-0.8SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.4

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX18-80P-0.8SV Overview

Use the download button to access the FX18-80P-0.8SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18-, or try a keyword search, such as Headers and Edge Type Connectors
