FX2-100P-1.27DS(71) - Hirose

Description: Hirose FX2 Series, 1.27mm Pitch 100 Way 2 Row Right Angle PCB Header, Solder Termination, 0.5A

Download FX2-100P-1.27DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

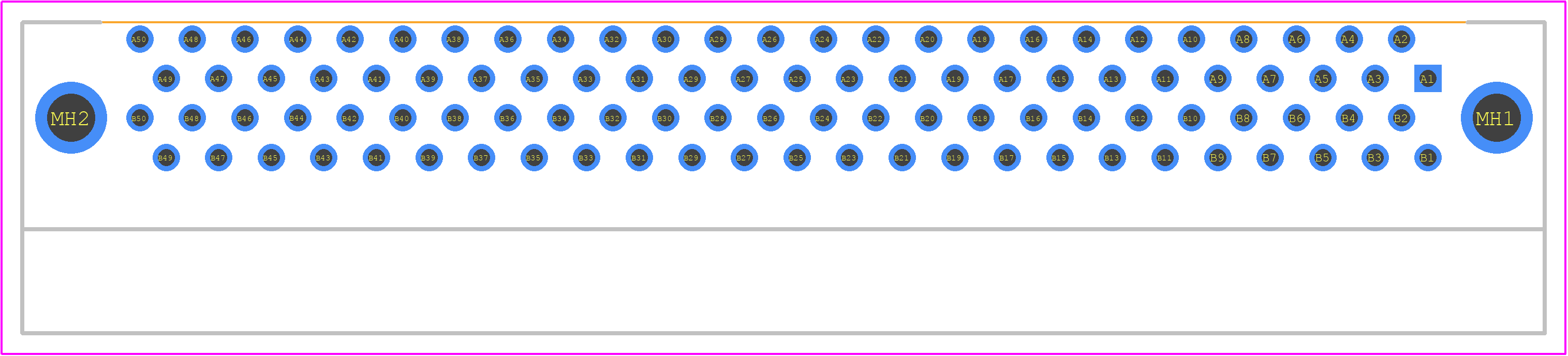

FX2-100P-1.27DS(71) - Hirose PCB footprint - Other - Other - FX2-100P-1.27DS(71)-1
click to zoom

FX2-100P-1.27DS(71) Details

  • Manufacturer Part Number:

    FX2-100P-1.27DS(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.5

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

FX2-100P-1.27DS(71) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to clean the connector contacts before mating, use the recommended torque for screw-type connectors, and avoid over-tightening or under-tightening the screws.
  • The maximum operating temperature for the FX2-100P-1.27DS(71) connector is 125°C, according to the datasheet. However, it's recommended to derate the temperature based on the specific application and environmental conditions.
  • Yes, the FX2-100P-1.27DS(71) connector is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The recommended cable length for the FX2-100P-1.27DS(71) connector depends on the specific application and signal frequency. As a general guideline, it's recommended to keep the cable length as short as possible to minimize signal attenuation and electromagnetic interference (EMI).
