The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the FX2-32S-1.27DS(71) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The maximum operating temperature range for the FX2-32S-1.27DS(71) connector is -40°C to +105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
The FX2-32S-1.27DS(71) connector is designed to meet IP67 standards, which means it can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific environmental requirements of your application.
The recommended torque value for the FX2-32S-1.27DS(71) connector is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values and tightening instructions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FX2-32S-1.27DS(71) Overview

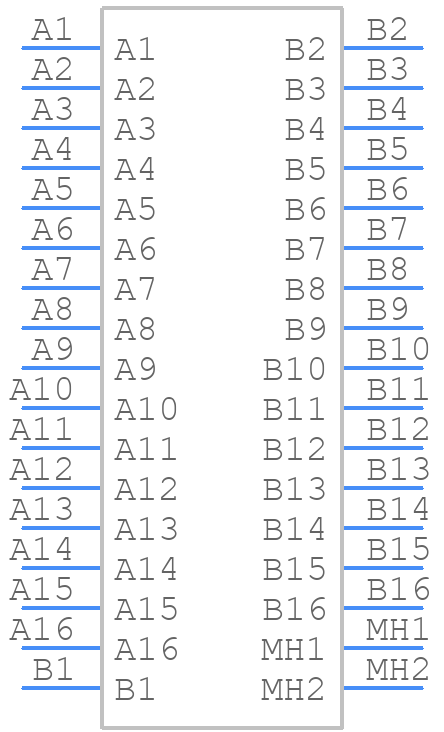

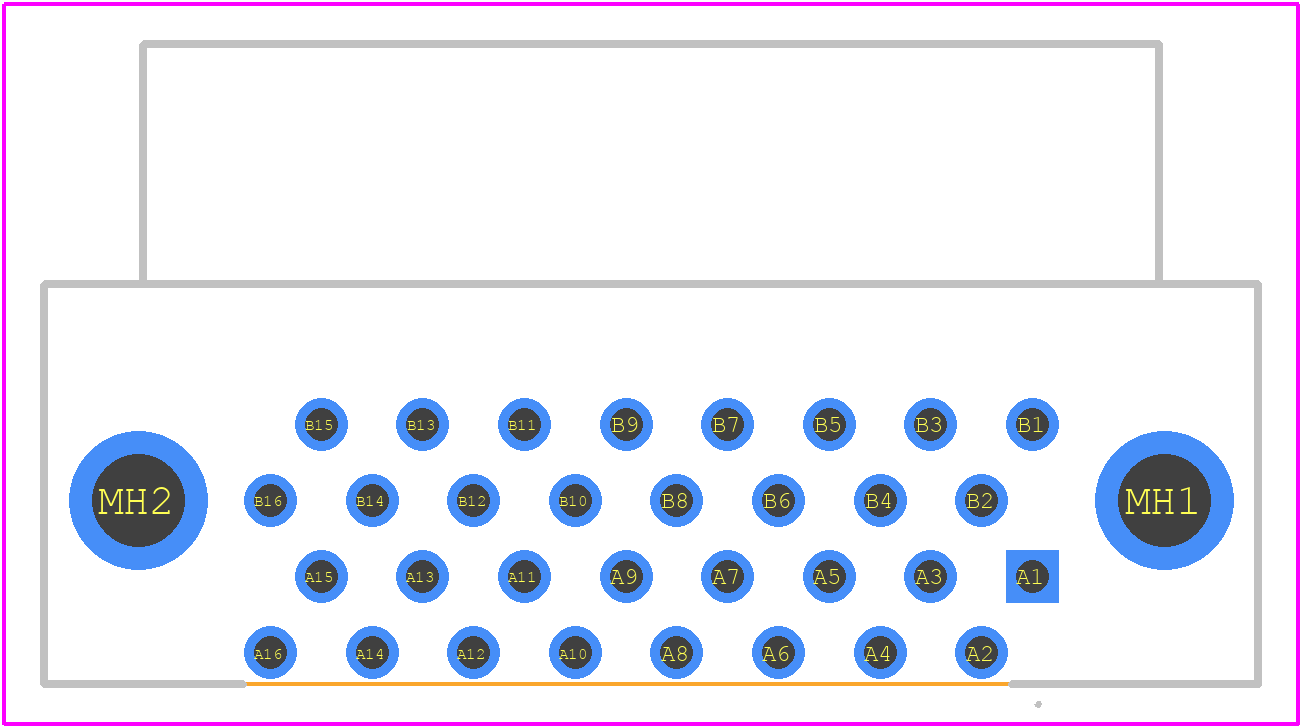

Use the download button to access the FX2-32S-1.27DS(71) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FX2-3,
or try a keyword search, such as Telecom and Datacom Connectors
