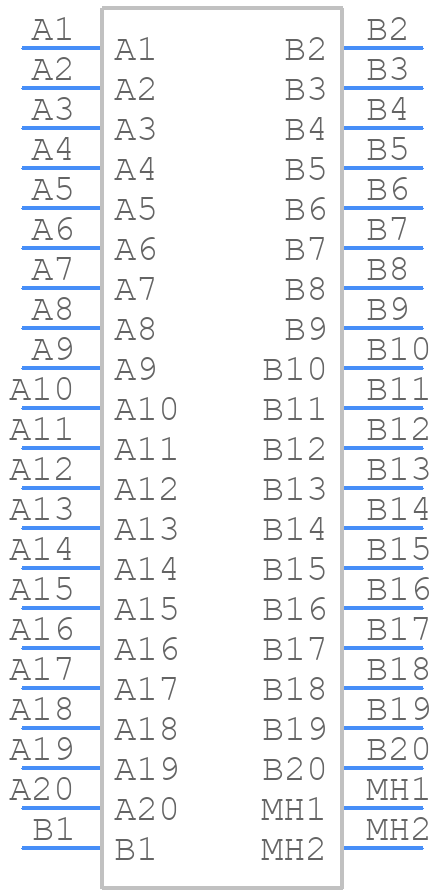

FX2-40S-1.27DSL(71) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

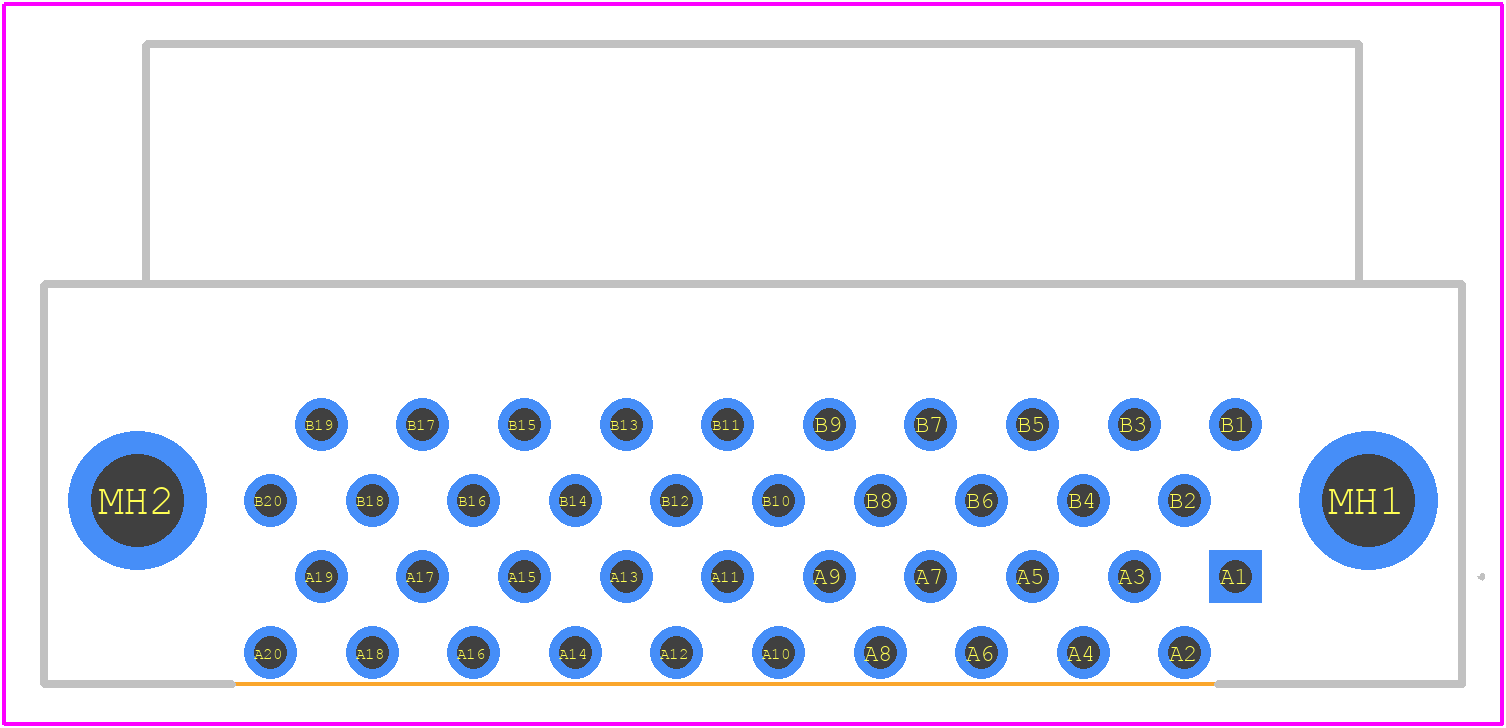

FX2-40S-1.27DSL(71) - Hirose PCB footprint - Other - Other - FX2-40S-1.27DSL(71)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FX2-40S-1.27DSL(71)
Part Number FX2-40S-1.27DSL(71)
Manufacturer Hirose
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - FX2-40S-1.27DSL(71)-1
Released Date Feb 28, 2026
Last Modified Date Feb 28, 2026 8:24 AM UTC
Pinout / Pin List Click Here (Member Only)

FX2-40S-1.27DSL(71) Details

Manufacturer Part Number:
FX2-40S-1.27DSL(71)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
7
Connector Type:
BOARD STACKING CONNECTOR

FX2-40S-1.27DSL(71) Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Verify that the connector is fully seated by checking the tactile click and visual inspection. Ensure the guide pins are fully engaged and the signal pins are fully mated.
The operating temperature range for the FX2-40S-1.27DSL(71) connector is -40°C to 105°C. However, it's essential to consult the datasheet and application notes for specific temperature ratings and derating factors.
Yes, the FX2-40S-1.27DSL(71) connector is designed to withstand vibrations and shocks. However, it's crucial to follow the recommended mounting and fastening procedures to ensure the connector remains secure and functional.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using harsh chemicals, solvents, or abrasive materials that may damage the connector's surface or compromise its performance.

Trust Checks

Community Provided

System Verified

Community Approved

FX2-40S-1.27DSL(71) Overview

Use the download button to access the FX2-40S-1.27DSL(71) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FX2-4, or try a keyword search, such as Telecom and Datacom Connectors

Parts related to FX2-40S-1.27DSL(71)

Showing 0 results

Image	Part Number	Model
	FX2-40S-1.27DSL(59) Hirose Electric Co Ltd Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
For a full list of alternate parts for FX2-40S-1.27DSL(71), check out Findchips.com
