FX2-52P-1.27DSL(71) - Hirose

Description: Hirose FX2 Series, 1.27mm Pitch 52 Way 2 Row Right Angle PCB Header, Solder Termination, 0.5A

Download FX2-52P-1.27DSL(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

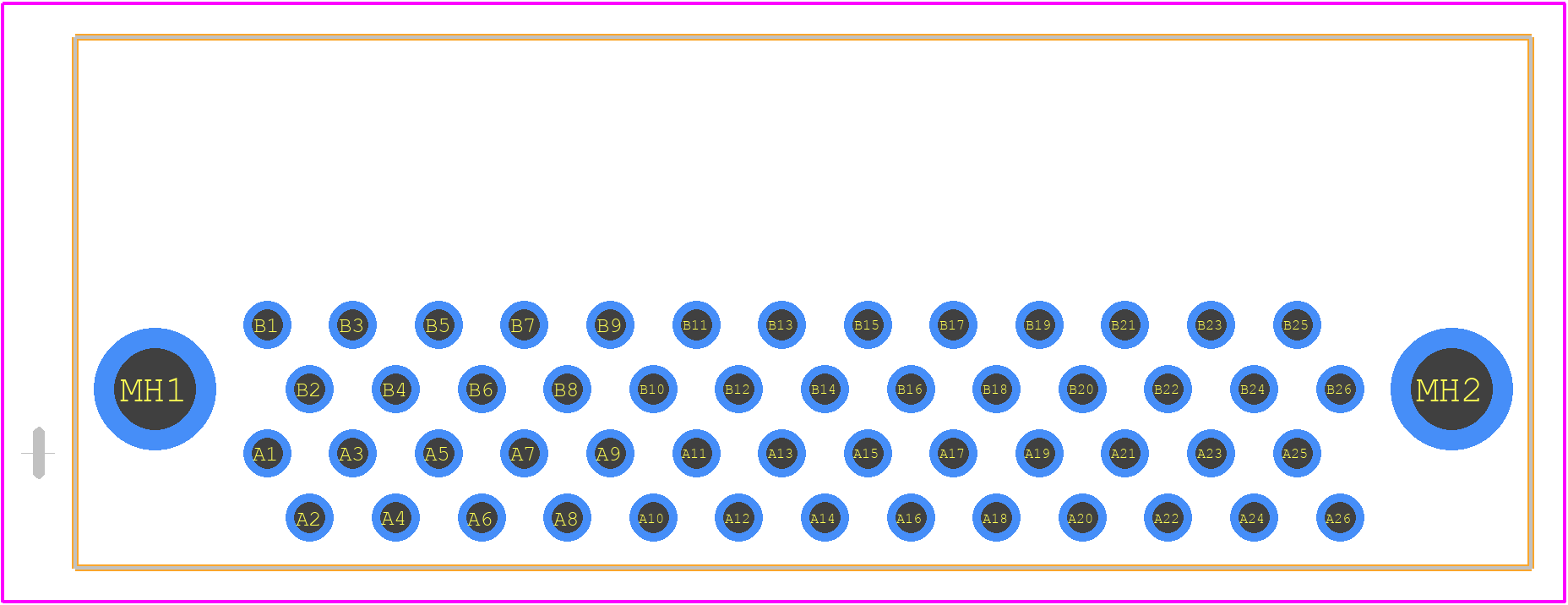

FX2-52P-1.27DSL(71) - Hirose PCB footprint - Other - Other - FX2-52P-1.27DSL(71)-2
click to zoom
3D Models
FX2-52P-1.27DSL(71) - Hirose  - 3D model - Other - FX2-52P-1.27DSL(71)-2
click to zoom

FX2-52P-1.27DSL(71) Details

  • Manufacturer Part Number:

    FX2-52P-1.27DSL(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.591 inch

  • Body Length:

    1.696 inch

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    45 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    300VAC V

  • Durability:

    500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    52

  • UL Flammability Code:

    94V-0
