FX22-40P-0.5SH footprint, schematic symbol and 3D model by Hirose

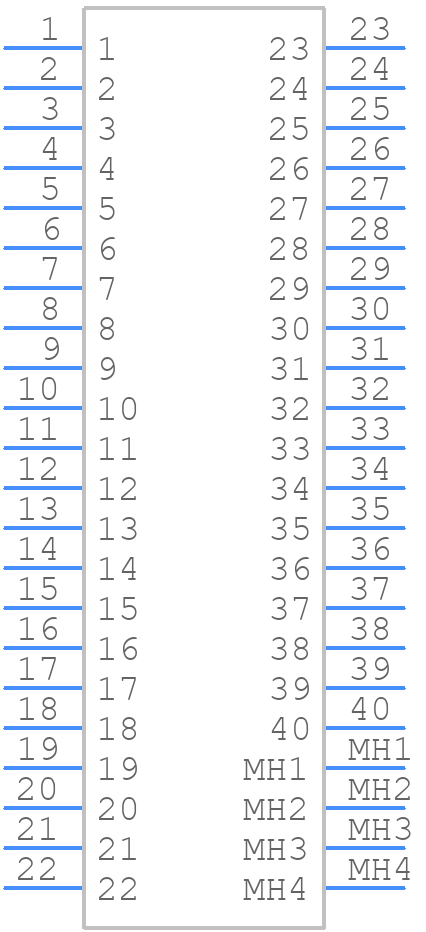

Symbol

click to zoom

PCB Footprints

FX22-40P-0.5SH - Hirose PCB footprint - Other - Other - FX22-40P-0.5SH-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FX22-40P-0.5SH
Part Number FX22-40P-0.5SH
Manufacturer Hirose
Pin Count 44
Part Category Connector
Package Category Other
Footprint Name Other - FX22-40P-0.5SH-1
Released Date Jul 19, 2017
Last Modified Date Feb 16, 2025 7:01 PM UTC
Pinout / Pin List Click Here (Member Only)

FX22-40P-0.5SH Details

Manufacturer Part Number:
FX22-40P-0.5SH
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
70 mΩ
Filter Feature:
NO
Insulation Resistance:
100000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYAMIDE
JESD-609 Code:
e4
Mating Contact Pitch:
0.02 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
0.7 A
Reference Standard:
UL
Terminal Pitch:
0.508 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
40

FX22-40P-0.5SH Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.0 N·m (5 kgf·cm to 10 kgf·cm) for the screws on the FX22-40P-0.5SH connector.
Yes, the FX22-40P-0.5SH connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, automotive, and aerospace.
Yes, the FX22-40P-0.5SH connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance up to 95% RH.
The FX22-40P-0.5SH connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the FX22-40P-0.5SH connector is designed for automated assembly and inspection systems, with a compact design and clear markings for easy identification and processing.
