The recommended torque value for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the Hirose application notes or contact their technical support for specific guidance.
Yes, the FX27-100S-0.8SV is designed to withstand vibrations and shocks. It meets the IEC 61373 Cat. 2 standard for vibration and shock resistance. However, it's essential to ensure proper mounting and screw locking to maintain the connector's integrity.
The FX27-100S-0.8SV is designed for high-speed signal transmission and is suitable for applications up to 10 Gbps. However, the actual signal integrity and transmission speed may depend on the specific application, PCB design, and cable quality.
The FX27-100S-0.8SV has an operating temperature range of -40°C to 105°C and is designed to withstand humidity. However, it's essential to consult the datasheet and Hirose's environmental testing reports to ensure the connector meets the specific requirements of your application.
The FX27-100S-0.8SV has a mating cycle life of 500 cycles minimum. However, this may vary depending on the specific application, mating force, and environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FX27-100S-0.8SV Overview

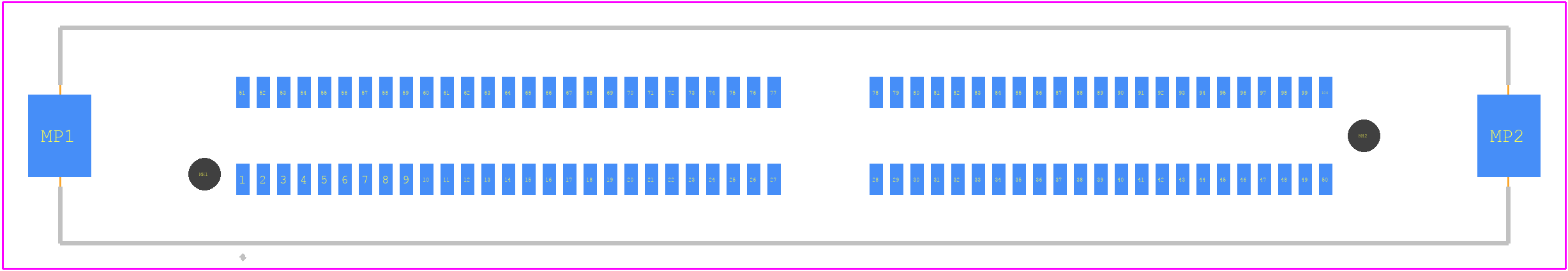

Use the download button to access the FX27-100S-0.8SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX27-,
or try a keyword search, such as Headers and Edge Type Connectors
