FX2C-40P-1.27DSA(71) - Hirose

Description: Hirose FX2, 1.27mm Pitch, 40 Way, 2 Row, Straight PCB Header, Through Hole

Download FX2C-40P-1.27DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX2C-40P-1.27DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

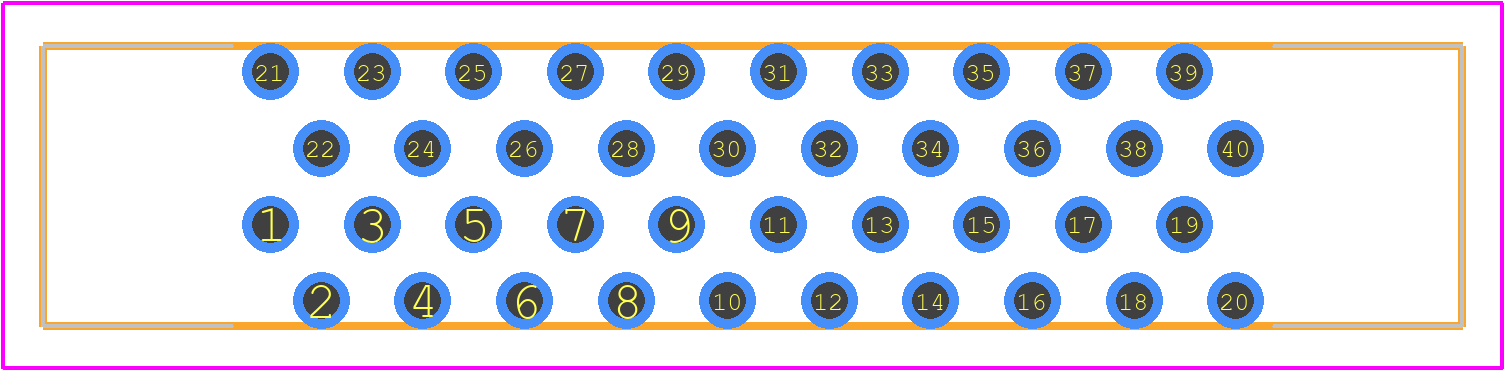

FX2C-40P-1.27DSA(71) - Hirose PCB footprint - Other - Other - FX2C-40P-1.27DSA(71)-1
click to zoom
3D Models
FX2C-40P-1.27DSA(71) - Hirose - 3D model - Other - FX2C-40P-1.27DSA(71)-1
click to zoom

FX2C-40P-1.27DSA(71) Details

  • Manufacturer Part Number:

    FX2C-40P-1.27DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Connector Type:

    BOARD STACKING CONNECTOR

FX2C-40P-1.27DSA(71) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the FX2C-40P-1.27DSA(71) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
  • The maximum operating temperature range for the FX2C-40P-1.27DSA(71) connector is -40°C to +105°C.
  • Yes, the FX2C-40P-1.27DSA(71) connector is compatible with lead-free soldering and meets the requirements of the RoHS directive.
  • The typical contact resistance of the FX2C-40P-1.27DSA(71) connector is 10mΩ max. per contact.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX2C-40P-1.27DSA(71) Overview

Use the download button to access the FX2C-40P-1.27DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX2C-, or try a keyword search, such as Telecom and Datacom Connectors
