FX2C-80P-1.27DSA(71) - Hirose

Description: Hirose FX2 Series, 1.27mm Pitch 80 Way 2 Row Straight PCB Header, Solder Termination, 0.5A

Download FX2C-80P-1.27DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX2C-80P-1.27DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

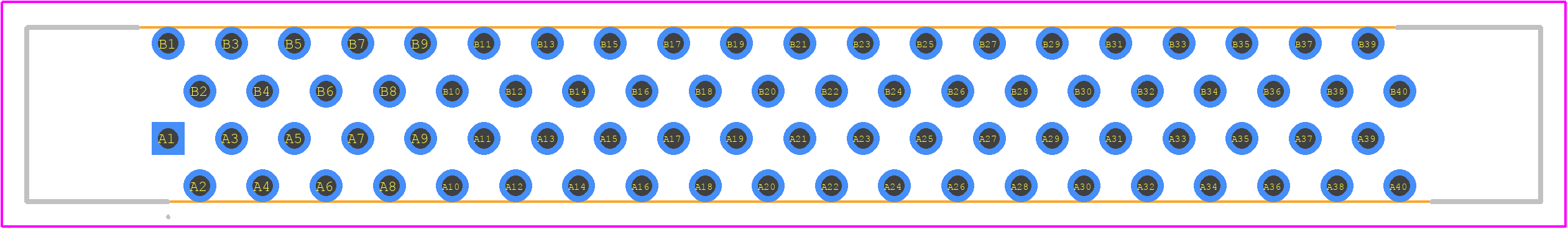

FX2C-80P-1.27DSA(71) - Hirose PCB footprint - Other - Other - FX2C-80P-1.27DSA(71)-1
click to zoom
3D Models
FX2C-80P-1.27DSA(71) - Hirose - 3D model - Other - FX2C-80P-1.27DSA(71)-1
click to zoom

FX2C-80P-1.27DSA(71) Details

  • Manufacturer Part Number:

    FX2C-80P-1.27DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Connector Type:

    BOARD STACKING CONNECTOR

FX2C-80P-1.27DSA(71) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FX2C-80P-1.27DSA(71) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
  • The maximum operating temperature for the FX2C-80P-1.27DSA(71) connector is 125°C, with a storage temperature range of -40°C to 125°C.
  • Yes, the FX2C-80P-1.27DSA(71) connector is compatible with lead-free soldering and is RoHS compliant.
  • The typical insertion force for the FX2C-80P-1.27DSA(71) connector is 1.5N per contact, with a maximum insertion force of 3.5N per contact.
