The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the FX2CA-80P-1.27DSAL(71) connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, with an amplitude of 1.5 mm (0.06 in) in the X, Y, and Z directions. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity in high-vibration environments.
Yes, the FX2CA-80P-1.27DSAL(71) connector is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less. Hirose Electric Co Ltd recommends following the IPC-J-STD-020D standard for lead-free soldering.
The FX2CA-80P-1.27DSAL(71) connector is designed to operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to note that the connector's performance and reliability may be affected at extreme temperatures.
The FX2CA-80P-1.27DSAL(71) connector is designed to meet the IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and protection to maintain the connector's integrity in humid or wet environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FX2CA-80P-1.27DSAL(71) Overview

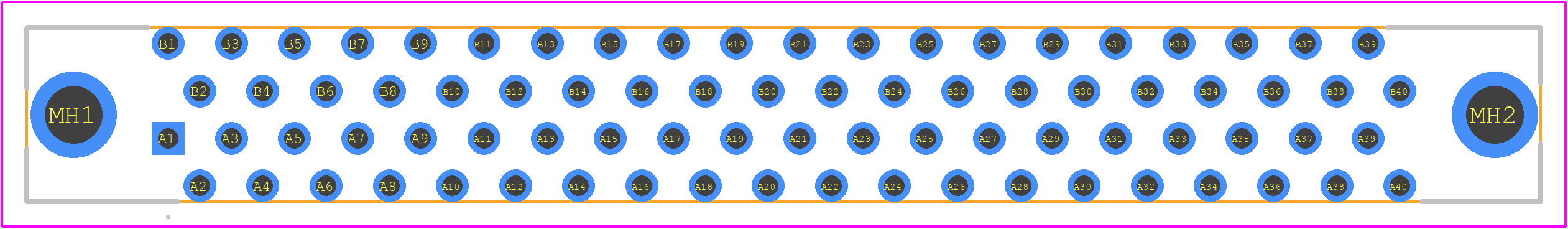

Use the download button to access the FX2CA-80P-1.27DSAL(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX2CA,
or try a keyword search, such as Headers and Edge Type Connectors
