FX2CA2-100S-1.27DSAL(71) - Hirose

Description: Hirose FX2 Series 1.27mm 100 Way 2 Row Straight PCB Socket Through Hole Board to Board

Download FX2CA2-100S-1.27DSAL(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX2CA2-100S-1.27DSAL(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

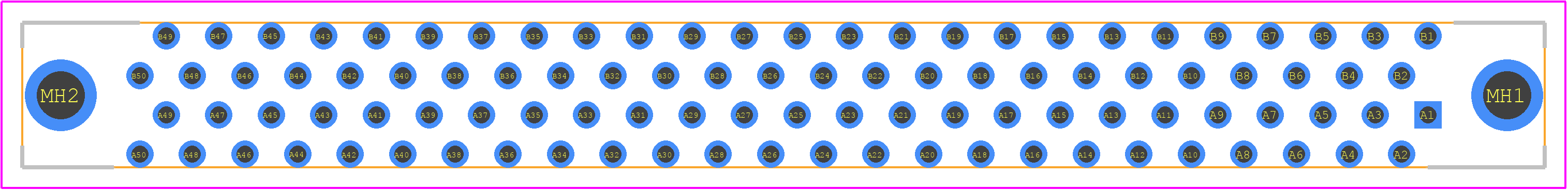

FX2CA2-100S-1.27DSAL(71) - Hirose PCB footprint - Other - Other - FX2CA2-100S-1.27DSAL(71)-2
click to zoom
3D Models
FX2CA2-100S-1.27DSAL(71) - Hirose - 3D model - Other - FX2CA2-100S-1.27DSAL(71)-2
click to zoom

FX2CA2-100S-1.27DSAL(71) Details

  • Manufacturer Part Number:

    FX2CA2-100S-1.27DSAL(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

FX2CA2-100S-1.27DSAL(71) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5.5 in-lbs to 13.4 in-lbs) for the M2 screws.
  • Yes, the FX2CA2-100S-1.27DSAL(71) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the FX2CA2-100S-1.27DSAL(71) connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the FX2CA2-100S-1.27DSAL(71) connector is compatible with lead-free soldering processes and can withstand peak reflow temperatures up to 260°C (500°F).
  • The FX2CA2-100S-1.27DSAL(71) connector has a mating cycle life of 500 cycles.
